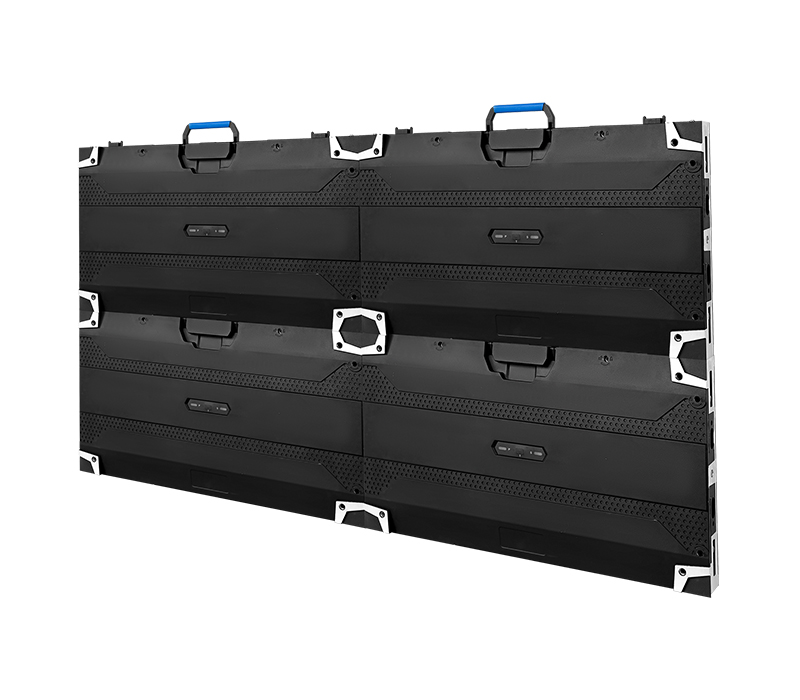

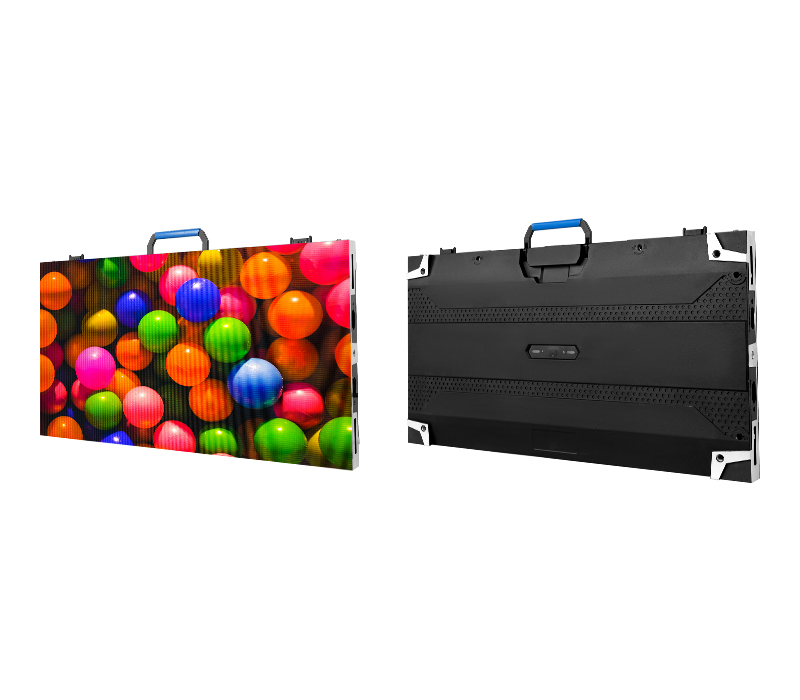

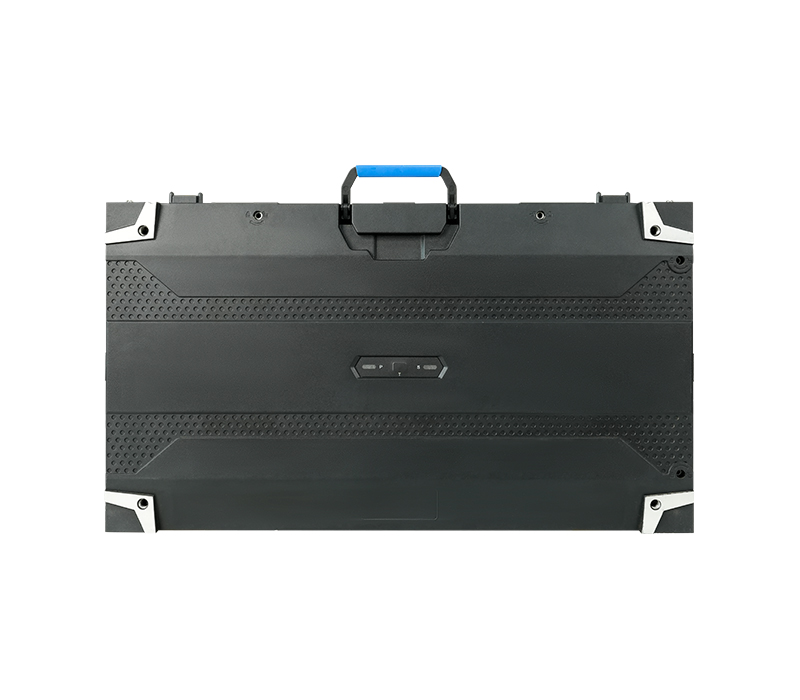

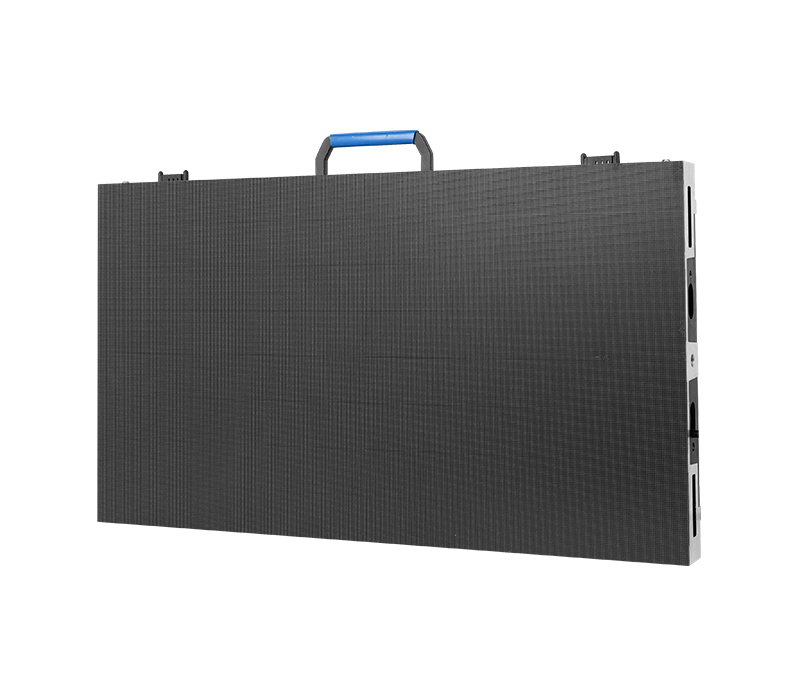

Product Introduction：16:9 Ultra HD LED Display. The panel size is 600×337.5mm. The pixel pitch can be available from P0.7-P2.3, which can easily achieve 2k, 4k, 8k resolution with SMD, GOB and COB technology.
|
|
|
UHD-1.5 |
UHD-1.8 |
UHD-2.3 |
|
Physical Pitch |
1.25mm/0.49" |
1.56mm/0.61" |
1.87mm/0.07" |
2.34mm/0.09" |
|
Pixel Configuration |
SMD1010 |
SMD1010 |
SMD1515 |
SMD2121 |
|
Pixel Density |
648000px/m2 |
410881px/m2 |
286225px/m2 |
182329px/m2 |
|
Module Dimension(WxH) |
300x168.75mm / 0.98"x0.55" |
|||
|
Panel Dimension(WxHxD) |
600x337.5mm / 1.96"x1.10" |
|||
|
No. of Module/panel(WxH) |
2x2 |
|||
|
Module Resolution |
240x135px |
192x108px |
160x90px |
128x72px |
|
Panel Resolution |
480x270px |
384x216px |
320x180px |
256x144px |
|
Panel Material |
Die-casting Aluminum |
|||
|
Panel Weight |
6.3kg / 13.88lbs |
|||
|
Gray Scale |
16bit |
|||
|
Contrast Ratio |
4000:1 |
|||
|
Avg. Power Consumption |
300w |
|||
|
Max. Power Consumption |
600w |
|||
|
Operating Temp/Humidity |
-10°C - 60°C / 10% - 60% |
|||
|
Storage Temp/Humidity |
-30°C - 60°C/ 10% - 60% |
|||
|
Refresh Rate |
7680hz |
|||
|
Brightness |
600~800nits |
|||
|
Viewing Angle(H/V) |
160°/140° |
|||
|
Expected Lifetime |
100,000hrs |
|||
|

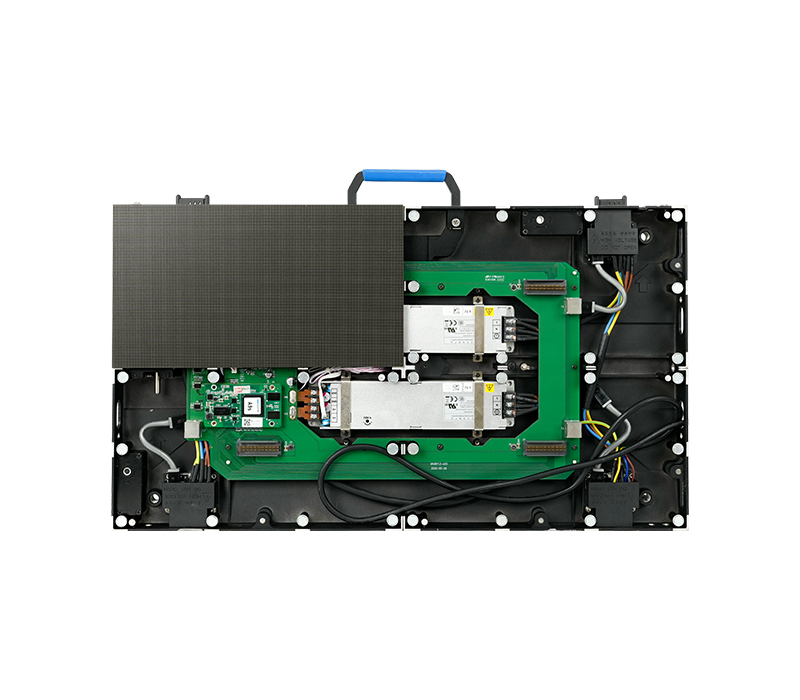

Service |
Front |
|||
|
IP Rating(Front/Rear) |
IP40/IP21 |
|||
|
Certification |
CCC,CE,ETL,RoHS |
|||
