BDR Series

BDR Series

Product Introduction:HD resolution,slim and stylish die casting design. suitable for billboards, outdoor signage, and more. Ideal for outdoor applications however daylight and rainy, good precision-solid and reliable, it will eliminate the heat and minimize the temperature of

BDR-2

BDR-3

BDR-4

BDR-5

BDR-6

BDR-8

BDR-10

Physical Pitch

2.5mm/0.09"

3.076mm/0.12"

4mm/0.16"

5mm/0.20"

6.67mm/0.26"

8mm/0.31"

10mm/0.39"

Pixel Configuration

SMD1921

SMD1921

SMD1921

SMD2727

SMD2727

SMD2727

SMD2727

Pixel Density

160000px/m2

105688px/m2

62500px/m2

40000px/m2

22500px/m2

15625px/m2

10000px/m2

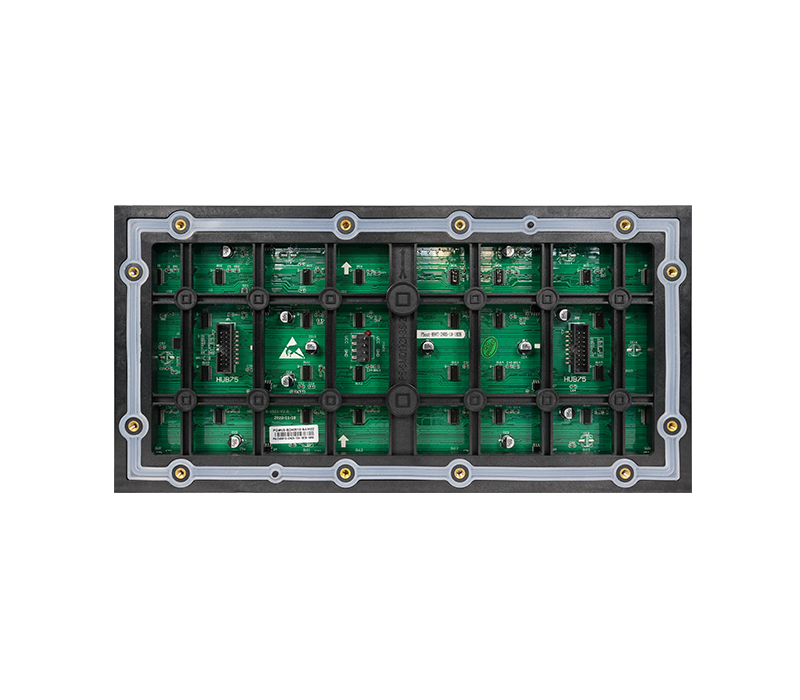

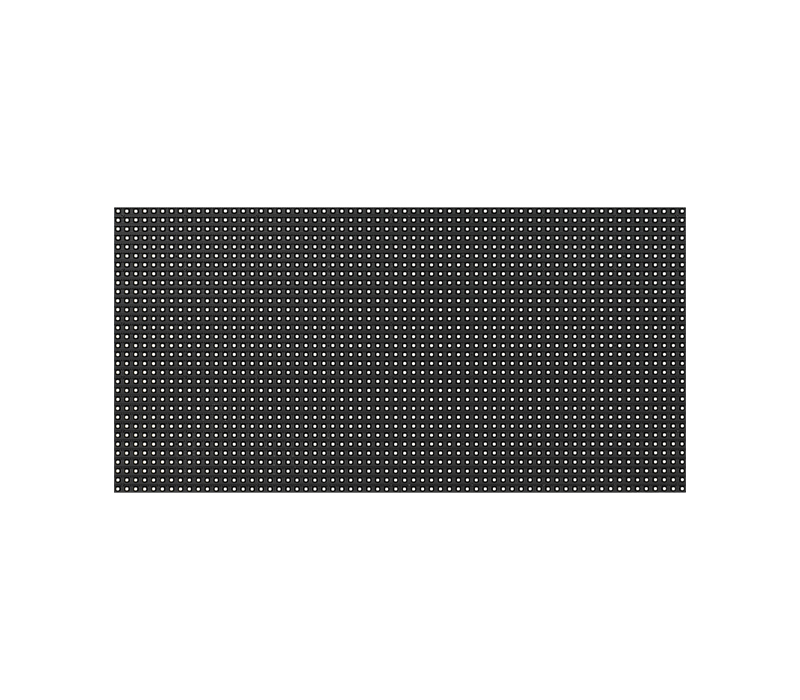

Module Dimension(WxH)

320x160mm / 12.59"x6.29"

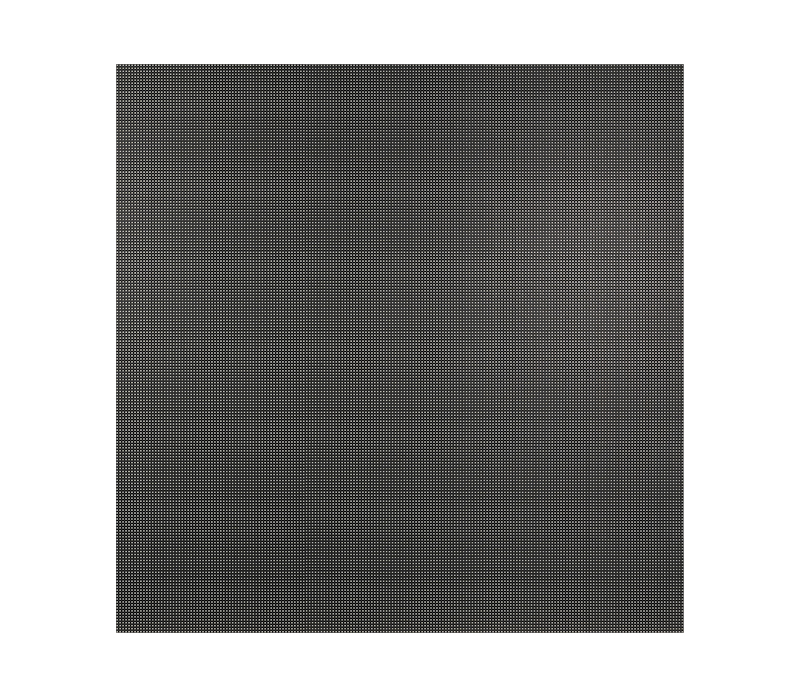

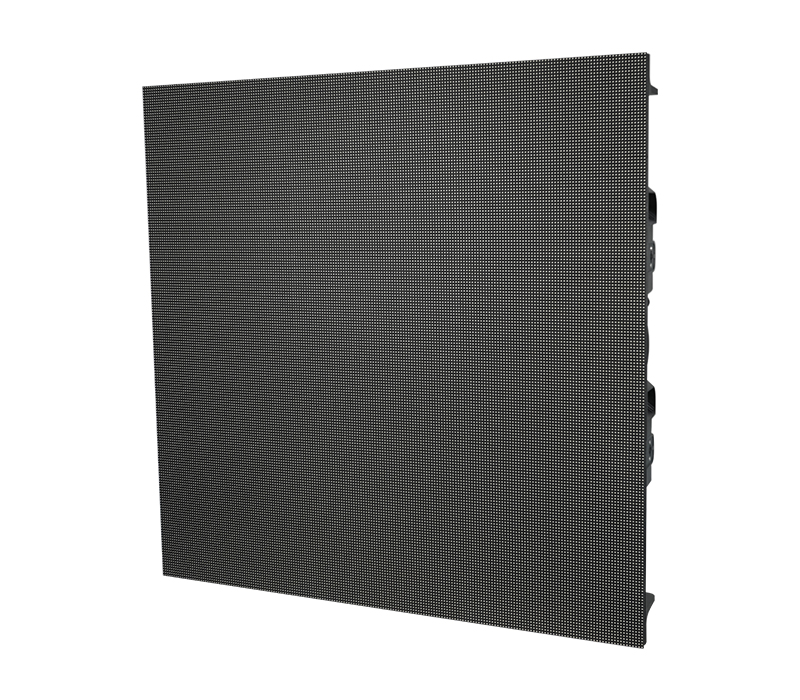

Panel Dimension(WxHxD)

960x960x112mm / 37.79"x37.79"x4.4"

No. of Module/panel(WxH)

3x6

Module Resolution

128x64px

104x52px

80x40px

64x32px

48x24px

40x20px

32x16px

Panel Resolution

384x384px

312x312px

240x240px

192x192px

144x144px

120x120px

96x96px

Panel Material

Die-casting Aluminum

Panel Weight

35kg / 77.16lbs

Gray Scale

16bit

Contrast Ratio

4000:1

Avg. Power Consumption

230w/m2

Max. Power Consumption

650w/m2

Operating Temp/Humidity

-10°C - 60°C / 10% - 60%

Storage Temp/Humidity

-30°C - 60°C/ 10% - 60%

Refresh Rate

3840hz

Brightness

≥5000 nits

Viewing Angle(H/V)

160°/140°

Expected Lifetime

100,000hrs

Max. Stacking/Hanging

10

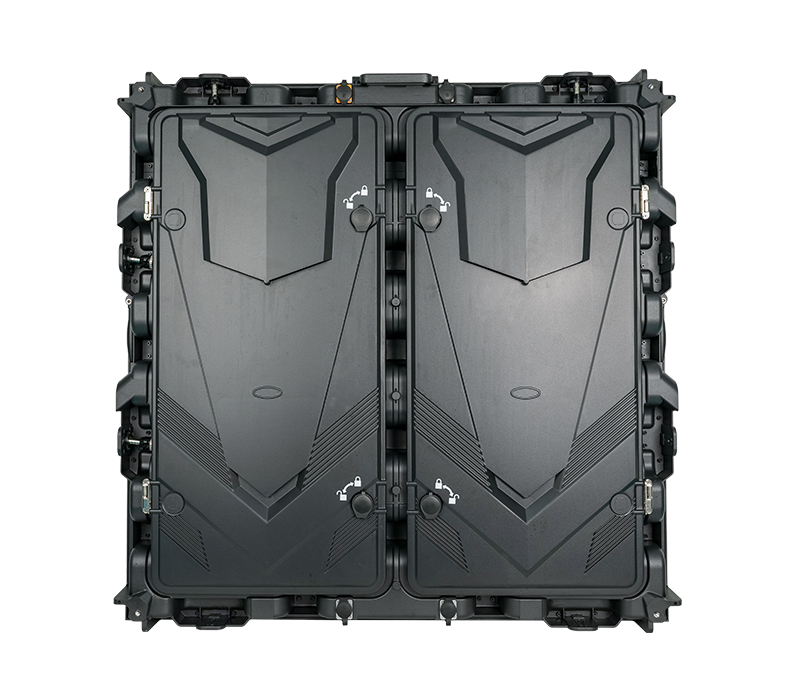

Service

Rear

IP Rating(Front/Rear)

IP65/IP54

Certification

CCC,CE,ETL,RoHS
