Product Introduction：OC Series LED display is a cost-effective model, high brightness, great waterproof, with cold steel housing. High resolution and brightness will maximize your outdoor LED screen consistent and long-lasting image quality.
.
|
|
BOF-B-3 |
BOF-B-4 |
BOF-B-5 |
BOF-B-6 |
BOF-B-8 |
BOF-B-10 |
BOF-B-16 |
|
Physical Pitch |
3mm |
4mm |
5mm |
6mm |
8mm |
10mm |
16mm |
|
Pixel Configuration |
SMD1921 |
SMD1921 |
SMD2727 |
SMD2727 |
SMD3535 |
SMD3535 |
DIP346 |
|
Pixel Density |
97656px/m2 |
62500px/m2 |
40000px/m2 |
22376px/m2 |
15625px/m2 |
10000px/m2 |
3906px/m2 |
|

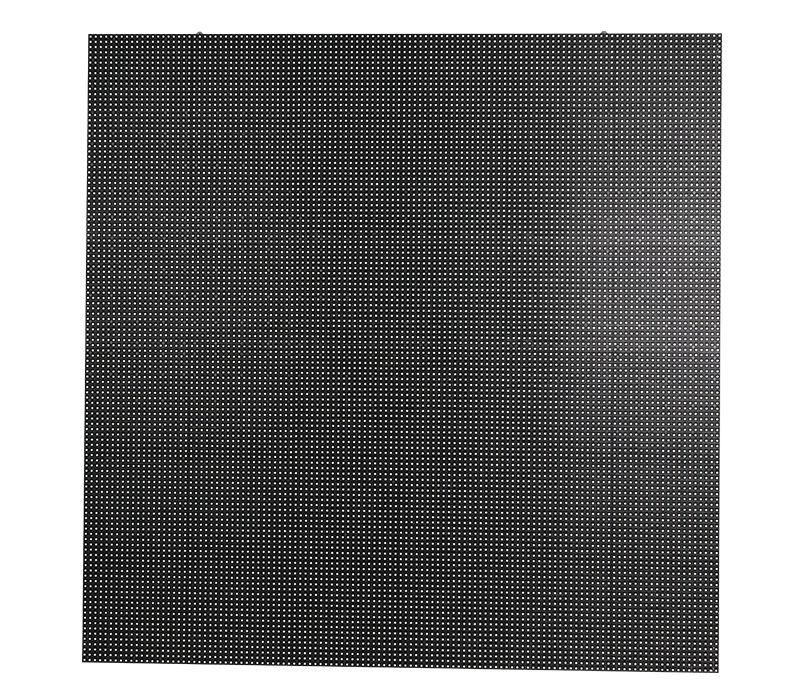

Module Dimension(WxH) |
192x192mm |
320x160mm |
320x160mm |
320x160mm |
320x160mm |
320x160mm |
320x160mm |
|

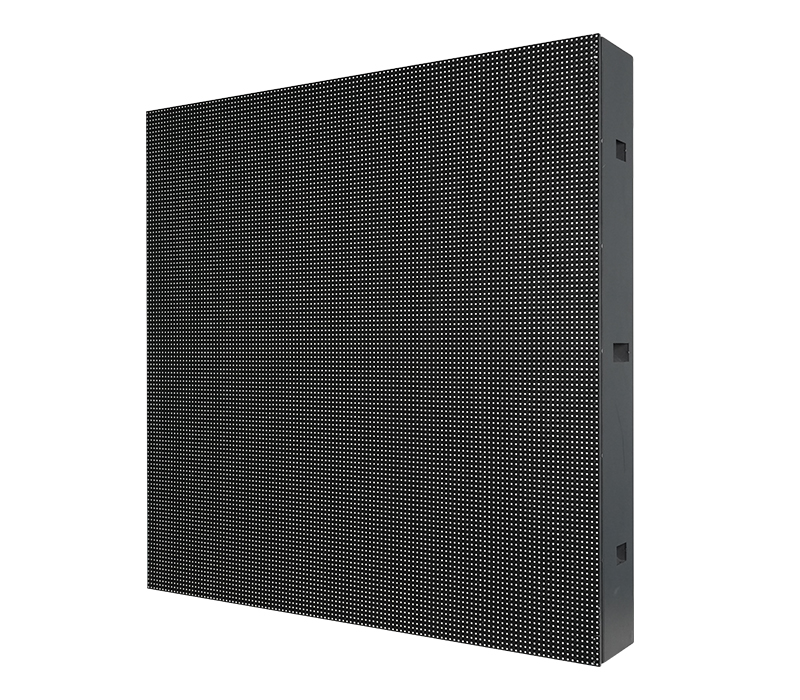

Panel Dimension(WxHxD) |
960x960x150mm / 37.79"x37.79"x5.9" |
||||||
|
No. of Module/panel(WxH) |
5x5 |
3x6 |
3x6 |
3x6 |
3x6 |
3x6 |
3x6 |
|
Module Resolution |
64x64px |
80x40px |
64x32px |
48x24px |
40x20px |
32x16 |
20x10 |
|
Panel Resolution |
320x320px |
240x240px |
192x192px |
144x144px |
120x120px |
96x96px |
60x60px |
|

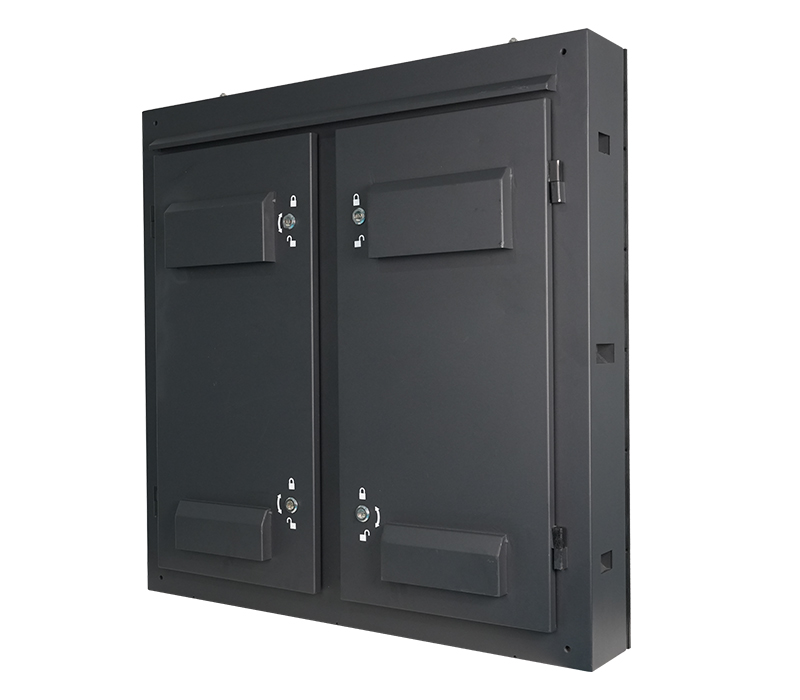

Panel Material |
Cold steel |
||||||
|
Panel Weight |
65kg / 143.3lbs |
||||||
|
Gray Scale |
16bit |
||||||
|
Contrast Ratio |
2000:1 |
||||||
|
Avg. Power Consumption |
230w/m2 |
||||||
|
Max. Power Consumption |
650w/m2 |
||||||
|
Operating Temp/Humidity |
-10°C - 60°C / 10% - 60% |
||||||
|
Storage Temp/Humidity |
-30°C - 60°C/ 10% - 60% |
||||||
|
Refresh Rate |
3840hz |
||||||
|
Brightness |
≥6500 nits |
||||||
|
Viewing Angle(H/V) |
160°/140° |
||||||
|
Expected Lifetime |
100,000hrs |
||||||
|
Max. Stacking/Hanging |
10 |
||||||
|

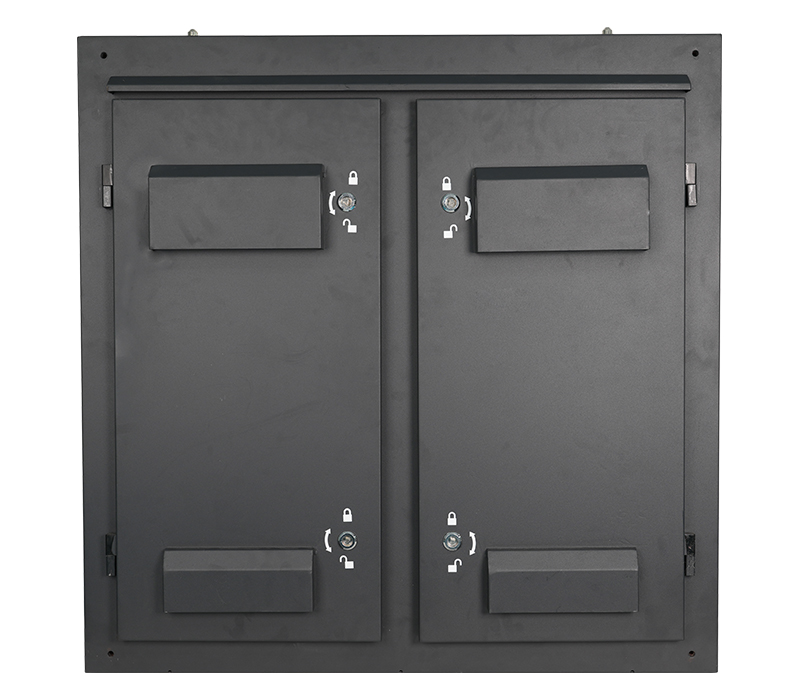

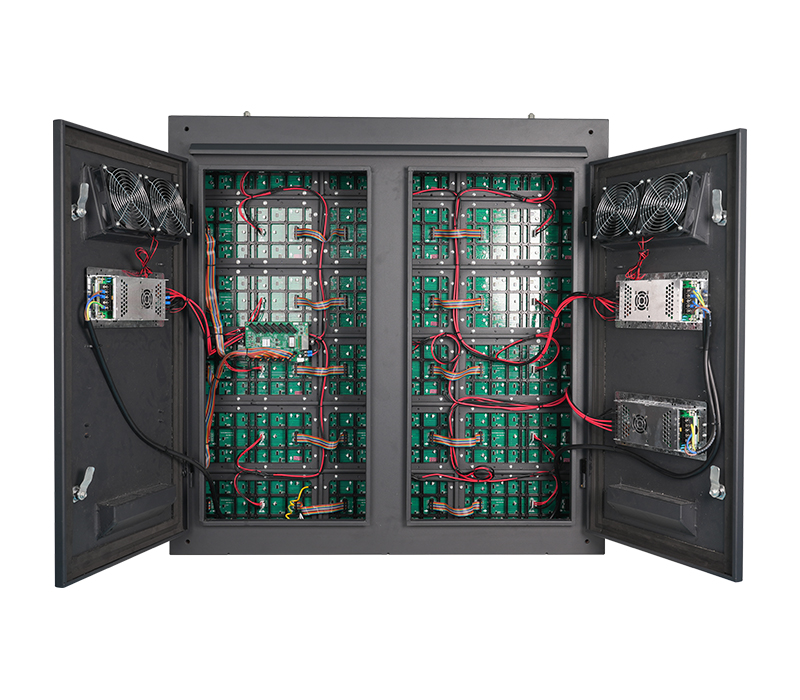

Service |
Rear |
||||||
|
IP Rating(Front/Rear) |
IP65/IP54 |
||||||
|
Certification |
CCC,CE,ETL,RoHS |
||||||
