Product Introduction：Full color commercial advertising billboard outdoor fixed digital LED display screens low heat, white design for better heat dissipation, no need for air conditioning. support full front or full rear maintenance, front maintenance can be installed on the
|
|
BOF-C-4.4 |
BOF-C-5.7 |
BOF-C-6.6 |
BOF-C-8 |
BOF-C-10 |
|
Physical Pitch |
4.44mm |
5.7mm |
6.67mm |
8mm |
10mm |
|
Pixel Configuration |
SMD1921 |
SMD2727 |
SMD2727 |
SMD2727 |
SMD2727 |
|
Pixel Density |
50625px/m2 |
30625px/m2 |
22500px/m2 |
15625px/m2 |
10000px/m2 |
|

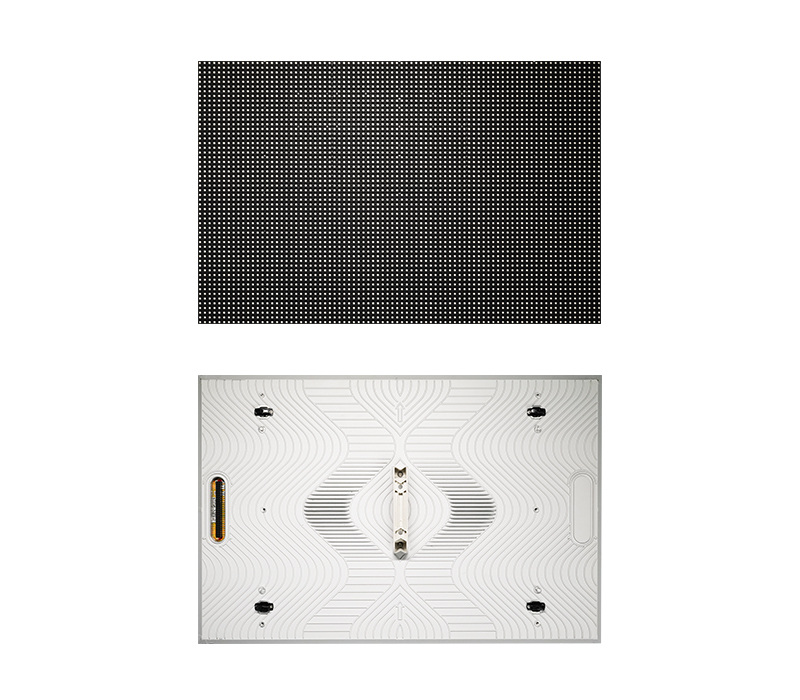

Module Dimension(WxH) |
480x320mm / 18.89"x12.59" |
||||
|
Panel Dimension(WxHxD) |
960x960x87mm / 37.79"x37.79"x3.42" |
||||
|
No. of Module/panel(WxH) |
2x3 |
||||
|
Module Resolution |
108x72px |
84x56px |
72x48px |
60x40px |
48x32px |
|
Panel Resolution |
216x216px |
168x168px |
144x144px |
120x120px |
96x96px |
|
Panel Material |
Die-casting Aluminum |
||||
|
Panel Weight |
25kg / 55.11lbs |
||||
|
Gray Scale |
16bit |
||||
|
Contrast Ratio |
4000:1 |
||||
|
Avg. Power Consumption |
186w/m2 |
||||
|
Max. Power Consumption |
550w/m2 |
||||
|
Operating Temp/Humidity |
-10°C - 60°C / 10% - 60% |
||||
|
Storage Temp/Humidity |
-30°C - 60°C/ 10% - 60% |
||||
|
Refresh Rate |
3840hz |
||||
|
Brightness |
≥5000nits |
≥6000/10000nits |
≥5500nits |
≥6000nits |
6000nits |
|
Viewing Angle(H/V) |
160°/140° |
||||
|
Expected Lifetime |
100,000hrs |
||||
|
Max. Stacking/Hanging |
10 |
||||
|
Service |
Front & Rear |
||||
|
IP Rating(Front/Rear) |
IP66 |
||||
|
Certification |
CCC,CE,ETL,RoHS |
||||
Factory address: No. 12, Kukeng Tongfuyu Industrial Zone, Guanlan Street, Longhua District, Shenzhen,China
