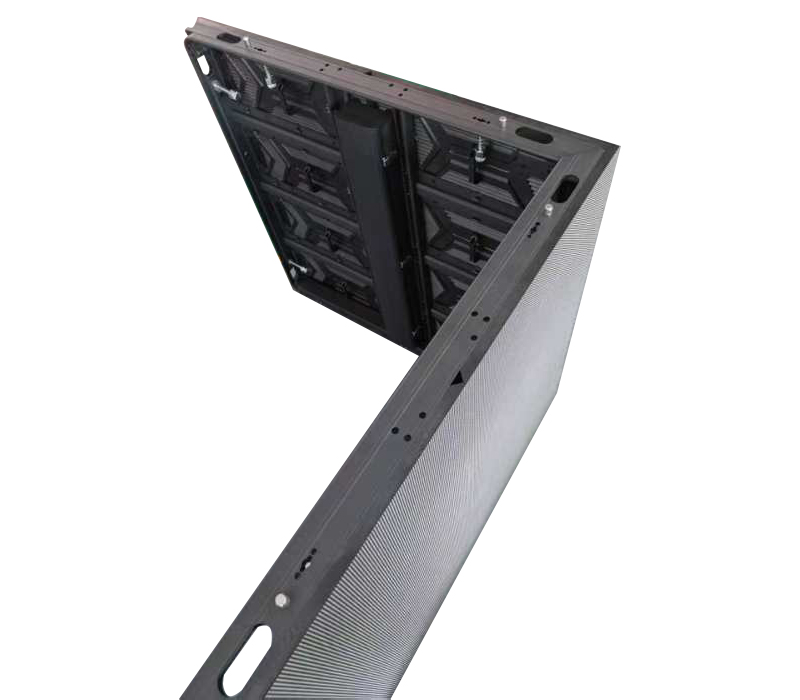

Product Introduction：Ultra lightweight led display only 23.5kg(51.8lbs) per panel, have 3.9, 4.8, 6.2, 7.8 10.4 pixel pitch for option.Die-cast aluminum cabinet has higher precision, easy for splicing. Support front service can meet all kinds of installation scenario
|
|
BOE-3.9 |
BOE-4.8 |
BOE-6.2 |
BOE-7.8 |
BOE-10.4 |
|
Physical Pitch |
3.91mm/0.15" |
4.81mm/0.19" |
6.25mm/0.25" |
7.81mm/0.31" |
10.42mm/0.41" |
|
Pixel Configuration |
SMD1921 |
SMD1921 |
SMD2727 |
SMD2727 |
SMD2727 |
|
Pixel Density |
65536px/m2 |
43264px/m2 |
25600px/m2 |
16389px/m2 |
9216px/m2 |
|

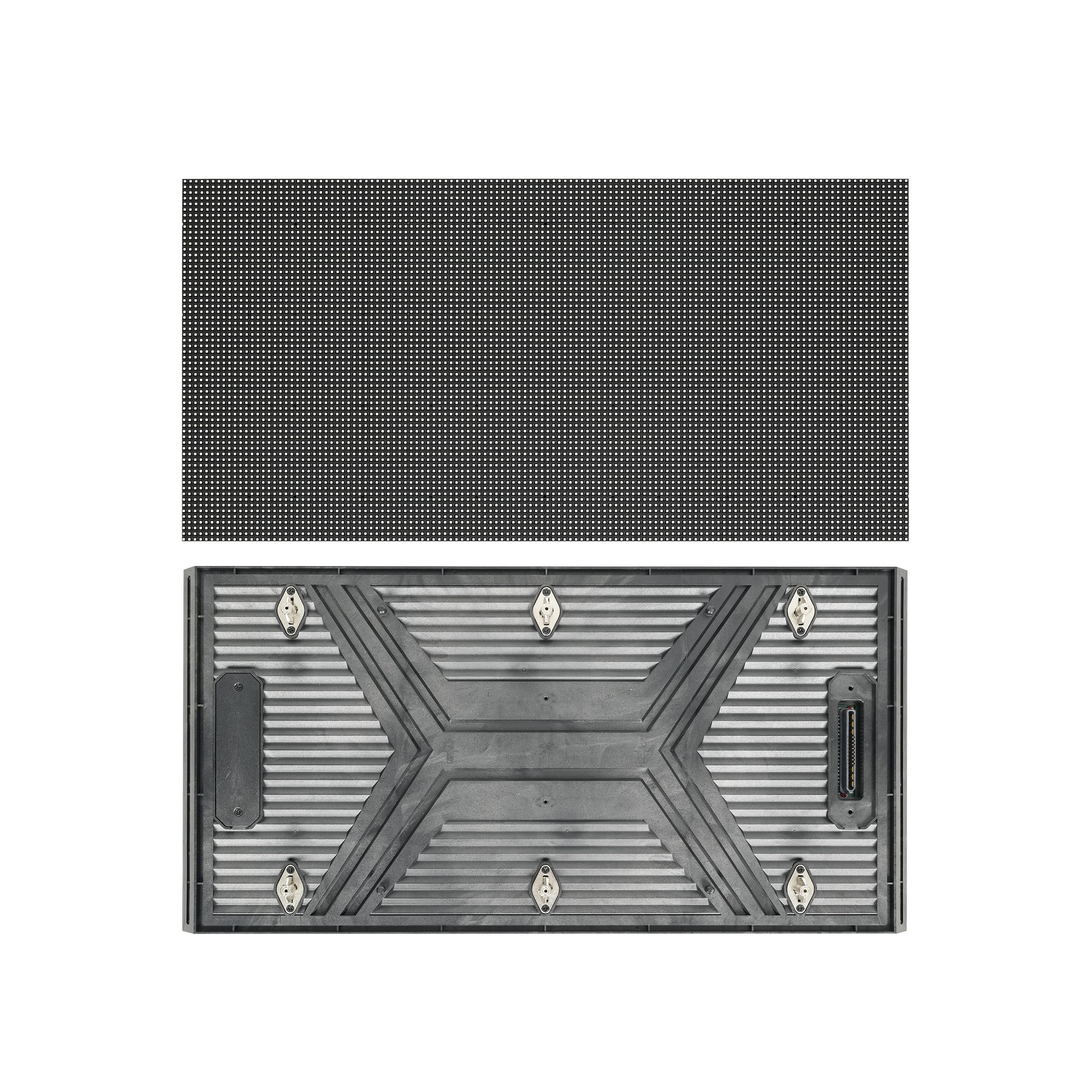

Module Dimension(WxH) |
500x250mm / 19.68"x9.84" |
||||
|
Panel Dimension(WxHxD) |
1000x1000mm / 39.37"x39.37" |
||||
|
No. of Module/panel(WxH) |
2x4 |
||||
|
Module Resolution |
128x64px |
104x52px |
80x40px |
64x32px |
48x24px |
|
Panel Resolution |
256x256px |
208x208px |
160x160px |
128x128px |
96x96px |
|
Panel Material |
Die-casting Aluminum |
||||
|
Panel Weight |
23.5kg / 51.8lbs |
||||
|
Gray Scale |
16bit |
||||
|
Contrast Ratio |
4000:1 |
||||
|
Avg. Power Consumption |
218w/m2 |
||||
|
Max. Power Consumption |
650w/m2 |
||||
|
Operating Temp/Humidity |
-10°C - 60°C / 10% - 60% |
||||
|
Storage Temp/Humidity |
-30°C - 60°C/ 10% - 60% |
||||
|
Refresh Rate |
3840hz |
||||
|
Brightness |
≥5000nits |
||||
|
Viewing Angle(H/V) |
140°/120° |
||||
|
Expected Lifetime |
100,000hrs |
||||
|
Max. Stacking/Hanging |
10 |
||||
|
Service |
Front |
||||
|
IP Rating(Front/Rear) |
IP65/IP54 |
||||
|
Certification |
CCC,CE,ETL,RoHS |
||||
