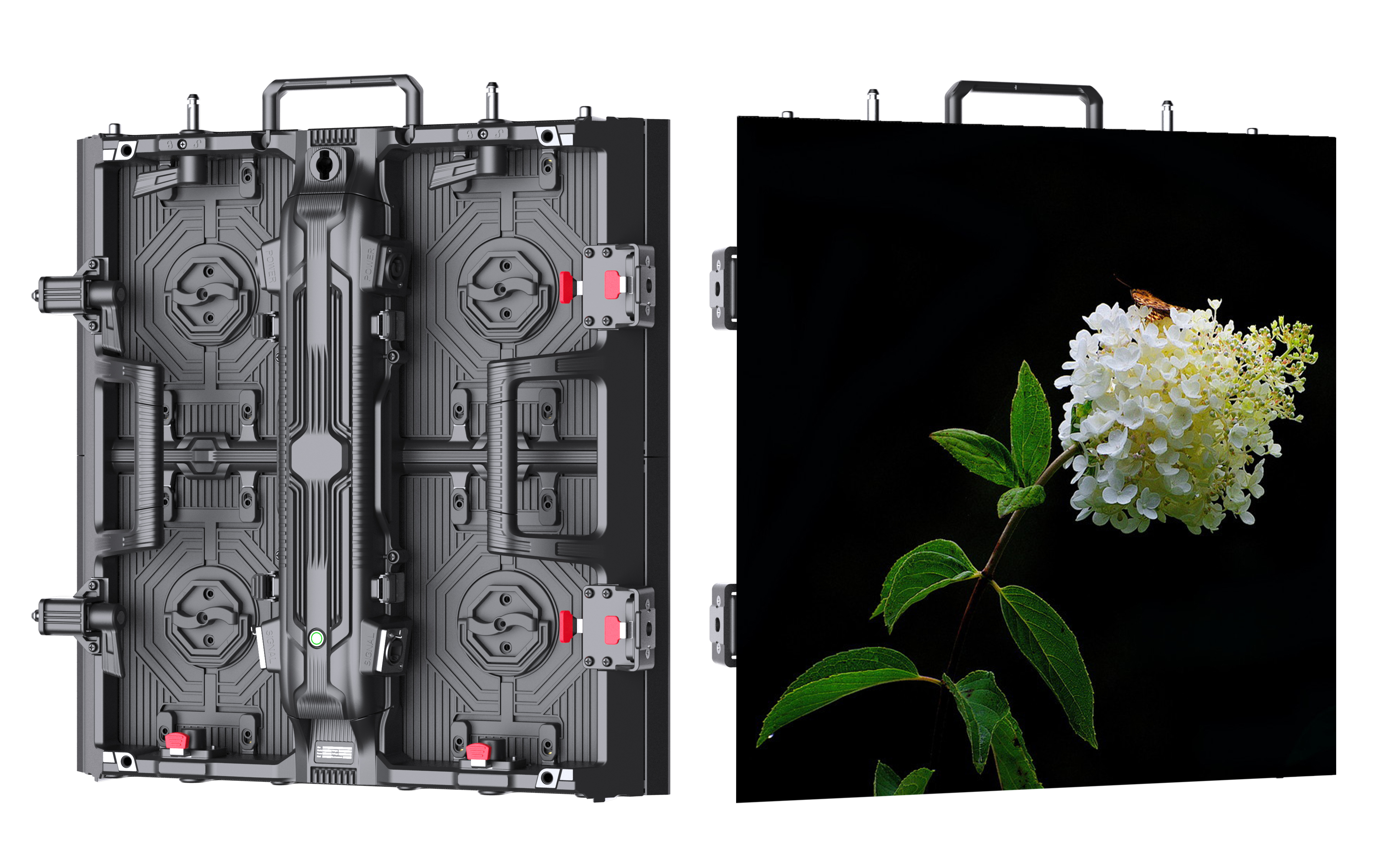

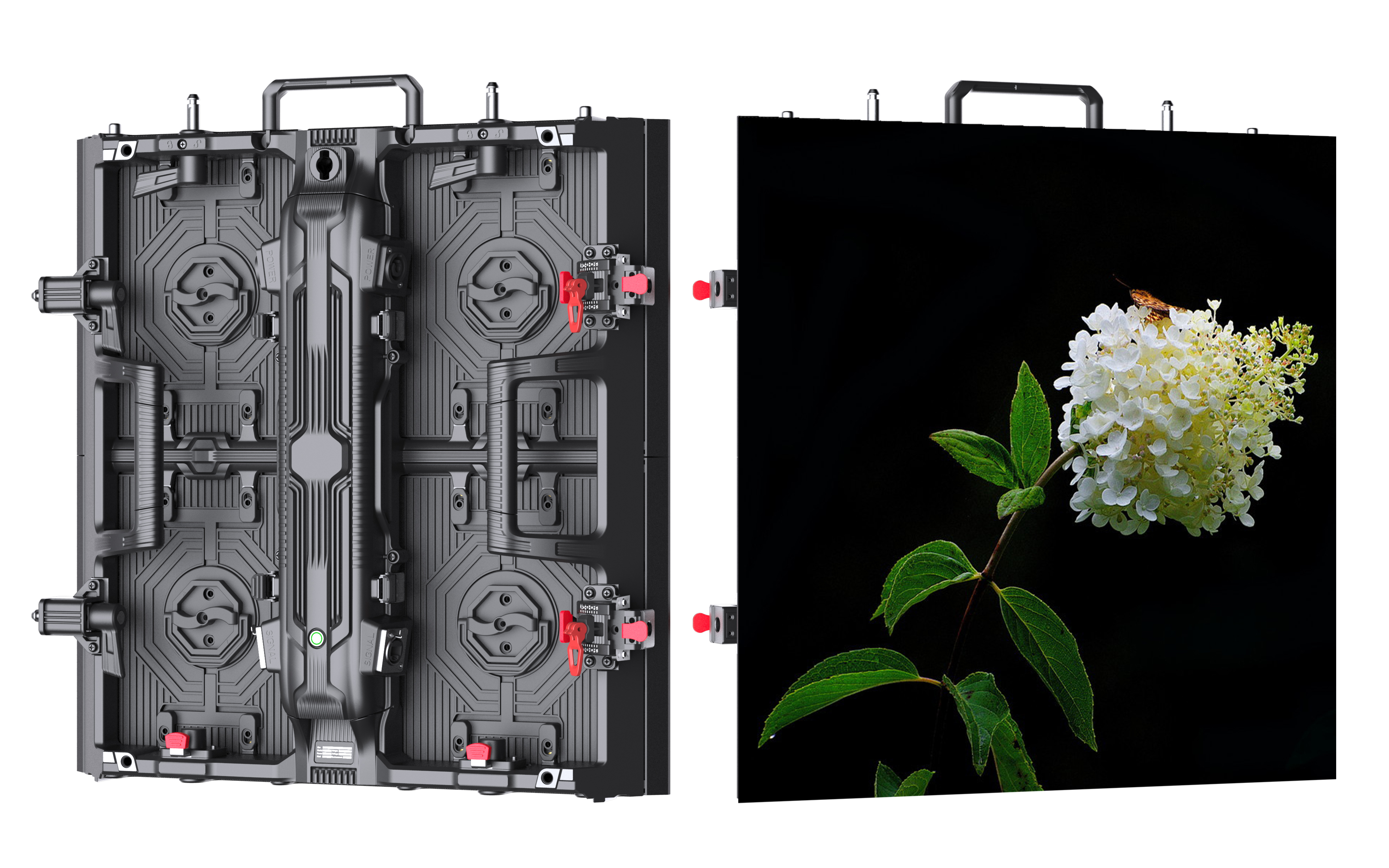

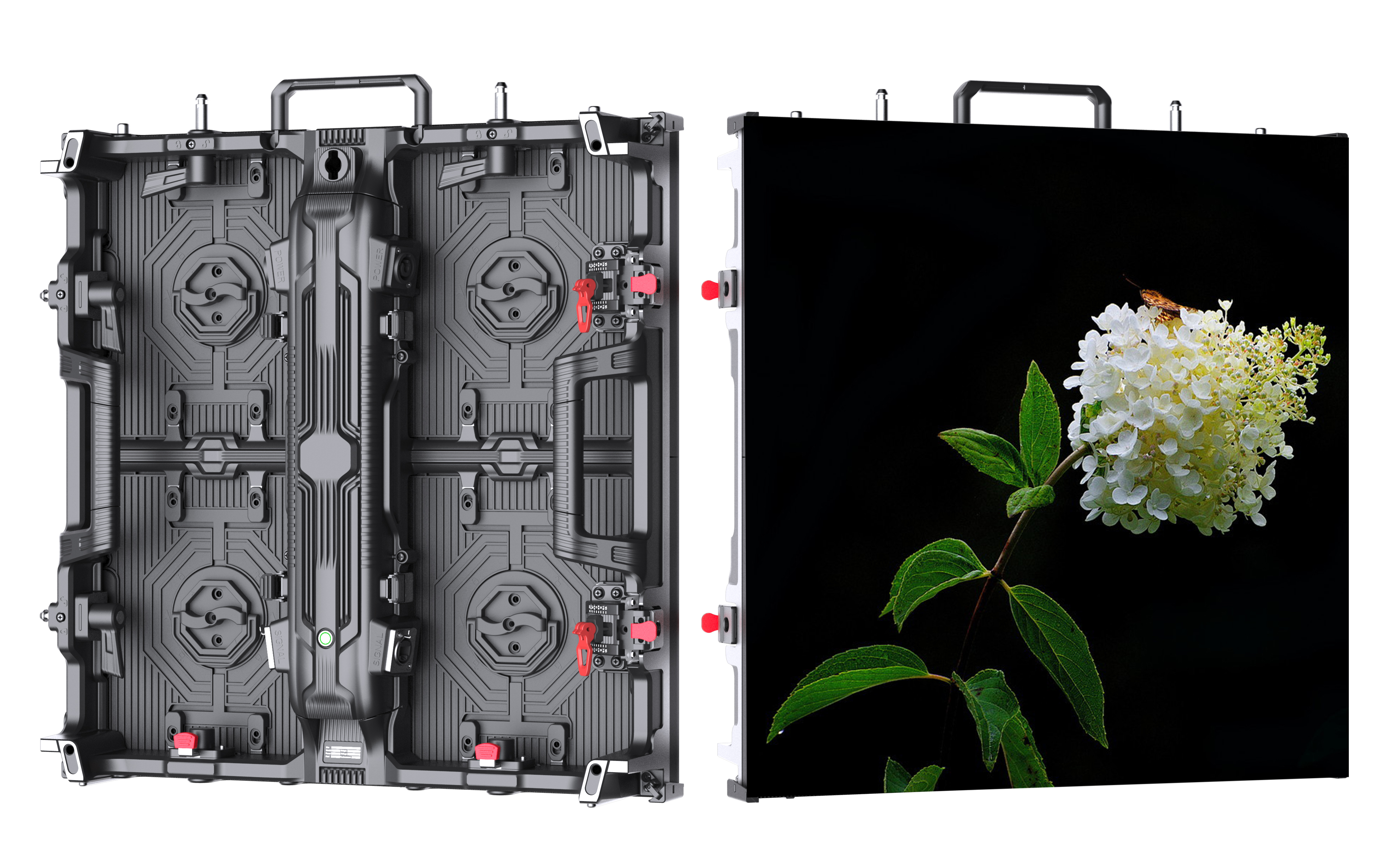

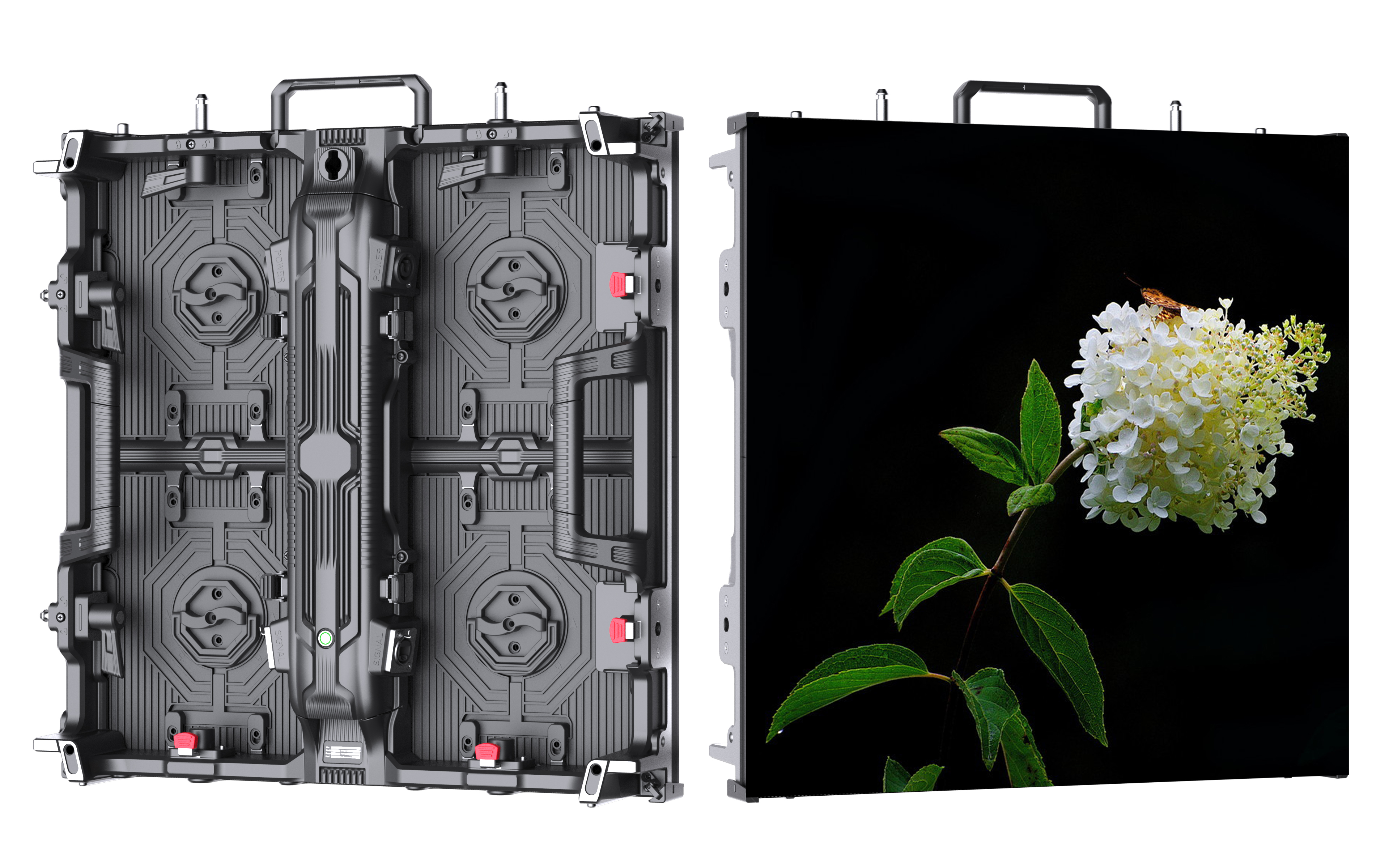

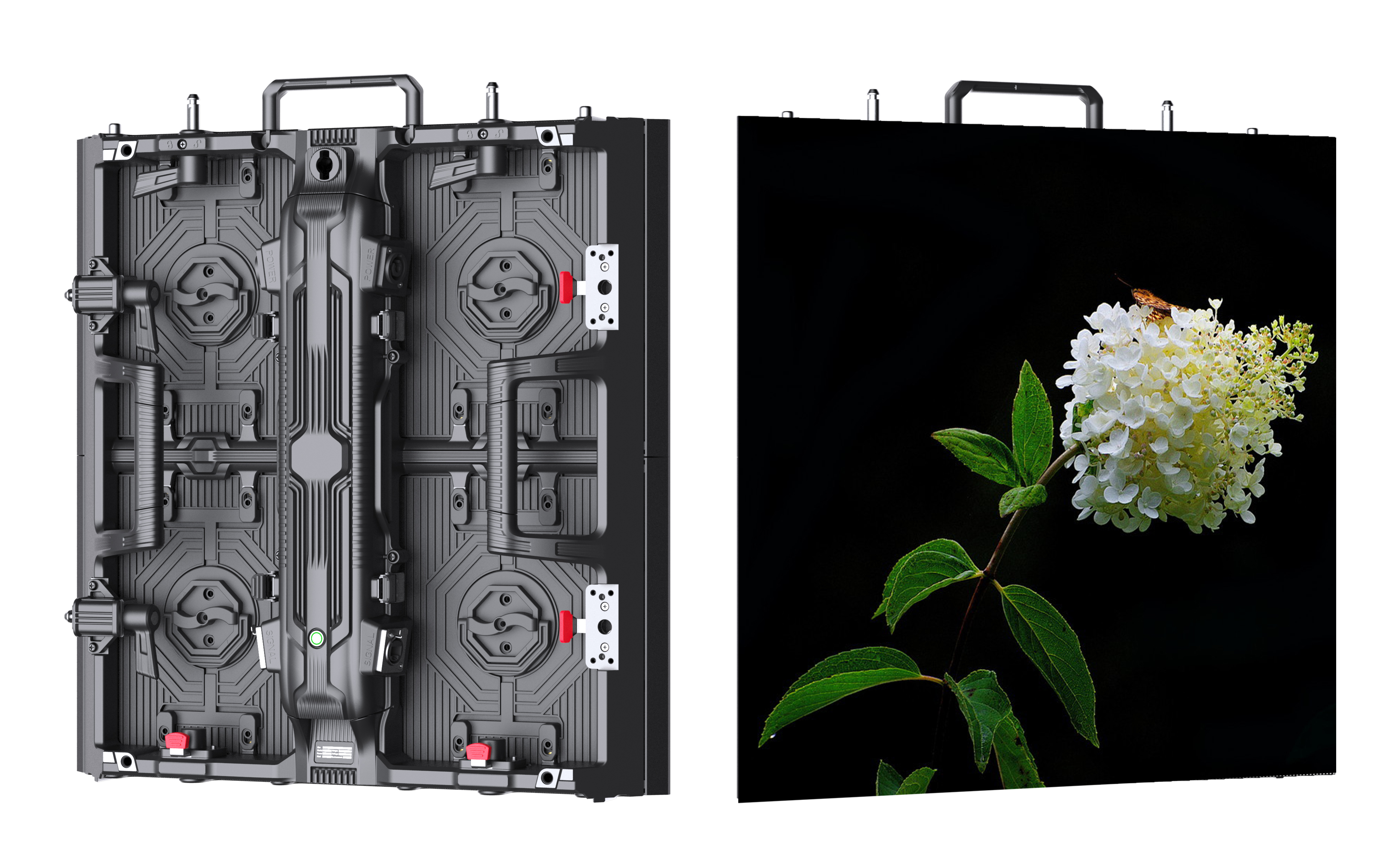

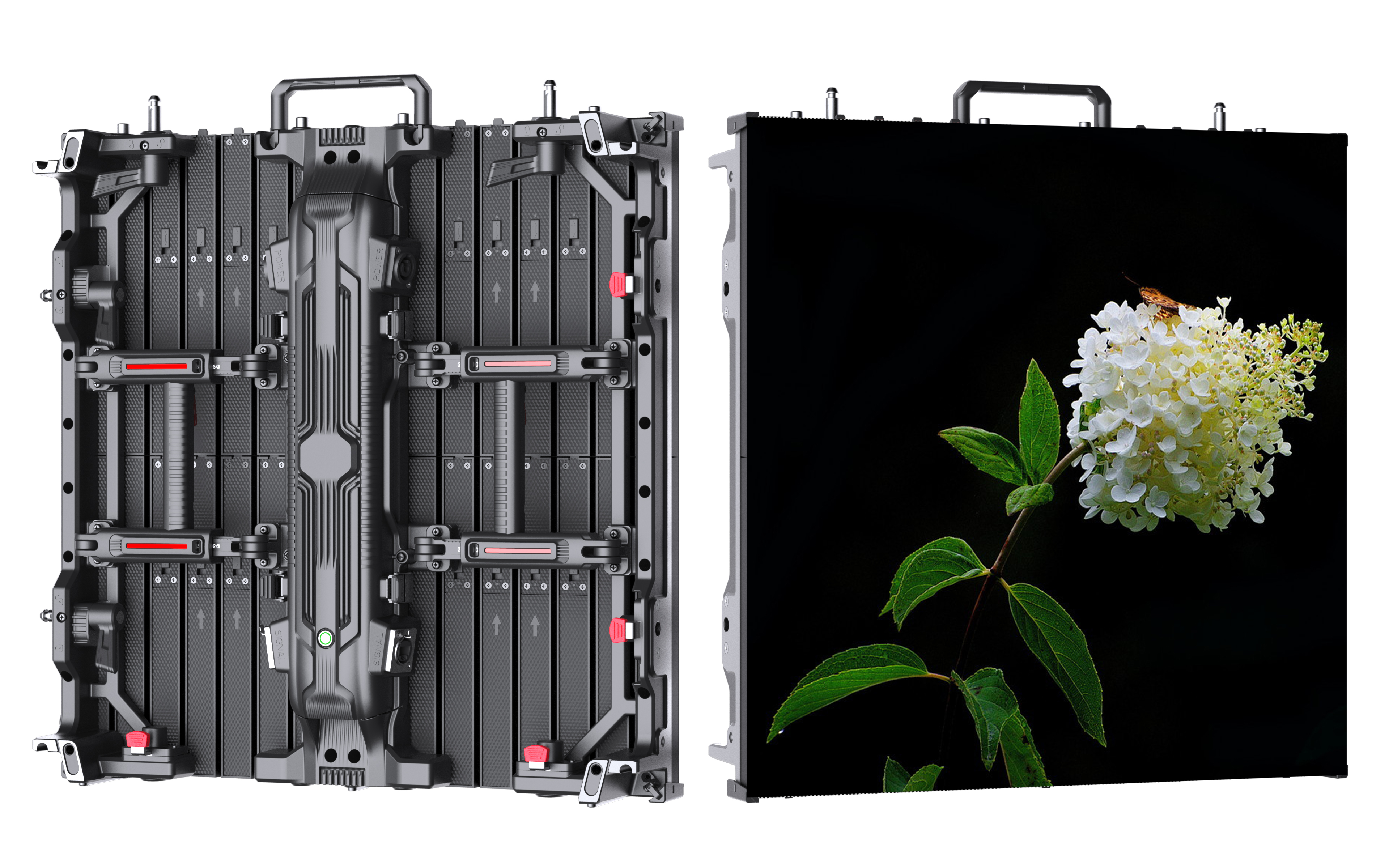

BIR-D-B Series

BIR-D-B-1.5

BIR-D-B-1.9

BIR-D-B-2.6

BIR-D-B-2.9

BIR-D-B-3.9

Physical Pitch

1.56mm/0.07“

1.9mm/0.07“

2.6mm/0.1”

2.9mm/0.12“

3.9mm/0.15”

Pixel Configuration

SMD1212

SMD1515

SMD1515

SMD2121

SMD2121

Pixel Density

409600px/m2

262144px/m2

147456px/m2

112896px/m2

65536px/m2

Module Dimension(WxH)

250x250mm / 9.84"x9.84"

Panel Dimension(WxHxD)

500x500x80mm / 19.68"x19.68"x3.14"

500x1000x80mm / 19.68"x39.37"x3.14"

No. of Module/panel(WxH)

2x2/2x4

Module Resolution

160x160px

128x128px

96x96px

84x84px

64x64px

Panel Resolution

320x320px

320x640px

256x256px

256x512px

192x192px

192x384px

168x168px

168x336px

128x128px

128x256px

Panel Material

Die-casting Aluminum

Panel Weight

8kg/14kg (17.63lbs / 30.86lbs)

Gray Scale

16bit

Contrast Ratio

4000:1

Avg. Power Consumption

50w/panel

100w/panel

50w/panel

100w/panel

50w/panel

100w/pane

28w/panel

56w/panel

28w/panel

56w/panel

Max. Power Consumption

145w/panel

290w/panel

145w/panel

290w/panel

145w/panel

290w/panel

85w/panel

165w/panel

85w/panel

165w/panel

Operating Temp/Humidity

-10°C - 60°C / 10% - 60%

Storage Temp/Humidity

-30°C - 60°C/ 10% - 60%

Refresh Rate

7680hz

Brightness

≥600nits

Viewing Angle(H/V)

160°/140°

Expected Lifetime

100,000hrs

Max. Stacking/Hanging

20/10

Service

Front/Rear

IP Rating(Front/Rear)

IP40/IP21

Certification

CCC,CE,ETL,RoHS
