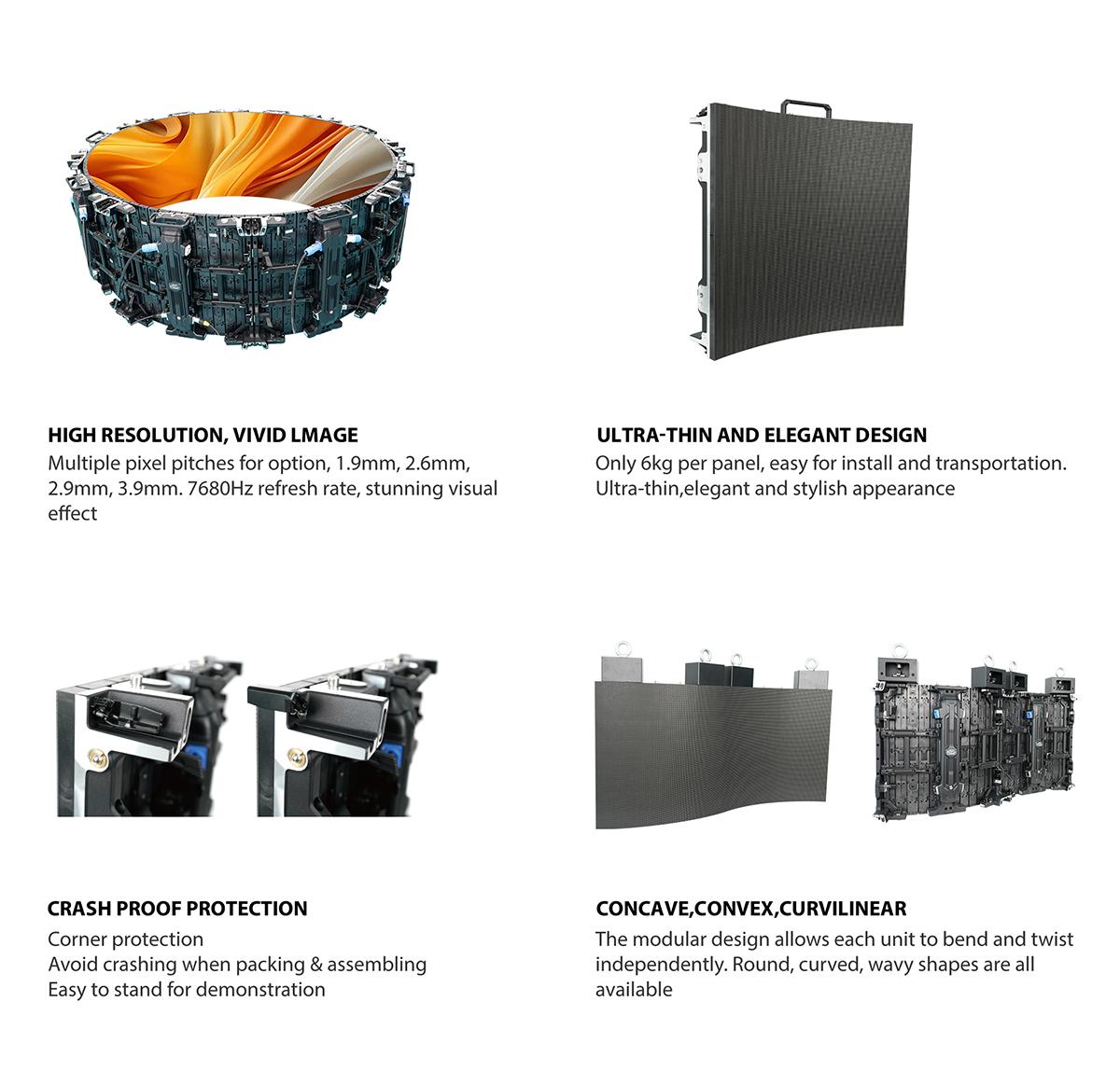

Product Introduction：The IRDF Series offers high resolution with multiple pixel pitches and a 7680Hz refresh rate for crisp visuals. It s ultra thin design ensures lightweight panels that are easy to install and transport. With crashproof corner protection and curved panel op
|
|
BIR-D-F-1.9 |
BIR-D-F-2.6 |
BIR-D-F-2.9 |
BIR-D-F-3.9 |
|
|
Physical Pitch |
1.95mm/0.07“ |
2.6mm/0.1” |
2.97mm/0.12“ |
3.91mm/0.15” |
|
|
Pixel Configuration |
SMD1515 |
SMD1515 |
SMD2121 |
SMD2121 |
|
|
Pixel Density |
262144px/m2 |
147456px/m2 |
112896px/m2 |
65536px/m2 |
|
|
Module Dimension(WxH) |
250x250mm / 9.84"x9.84" |
||||
|
Panel Dimension(WxHxD) |
500x500x80mm / 19.68"x19.68" |
||||
|
No. of Module/panel(WxH) |
2x2/2x4 |
||||
|
Module Resolution |
128x128px |
96x96px |
84x84px |
64x64px |
|
|
Panel Resolution |
256x256px |
192x192px |
168x168px |
128x128px |
|
|
Panel Material |
Die-casting Aluminum |
||||
|
Panel Weight |
6kg (13.22lbs) |
||||
|
Gray Scale |
16bit |
||||
|
Contrast Ratio |
4000:1 |
||||
|
Avg. Power Consumption |
50w/panel |
50w/panel |
28w/panel |
28w/panel |
|
|
Max. Power Consumption |
145w/panel |
145w/panel |
85w/panel |
85w/panel |
|
|
Operating Temp/Humidity |
-10°C - 60°C / 10% - 60% |
||||
|
Storage Temp/Humidity |
-30°C - 60°C/ 10% - 60% |
||||
|
Refresh Rate |
7680hz |
||||
|
Brightness |
≥600nits |
||||
|
Viewing Angle(H/V) |
160°/140° |
||||
|
Expected Lifetime |
100,000hrs |
||||
|
Max. Stacking/Hanging |
20/10 |
||||
|
Service |
Front/Rear |
||||
|
IP Rating(Front/Rear) |
IP40/IP21 |
||||
|
Certification |
CCC,CE,ETL,RoHS |
||||
