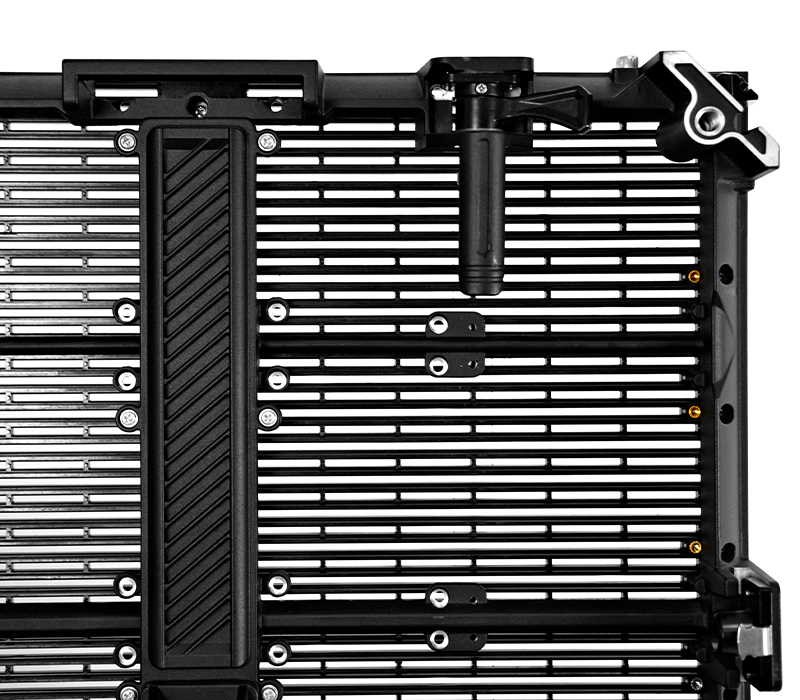

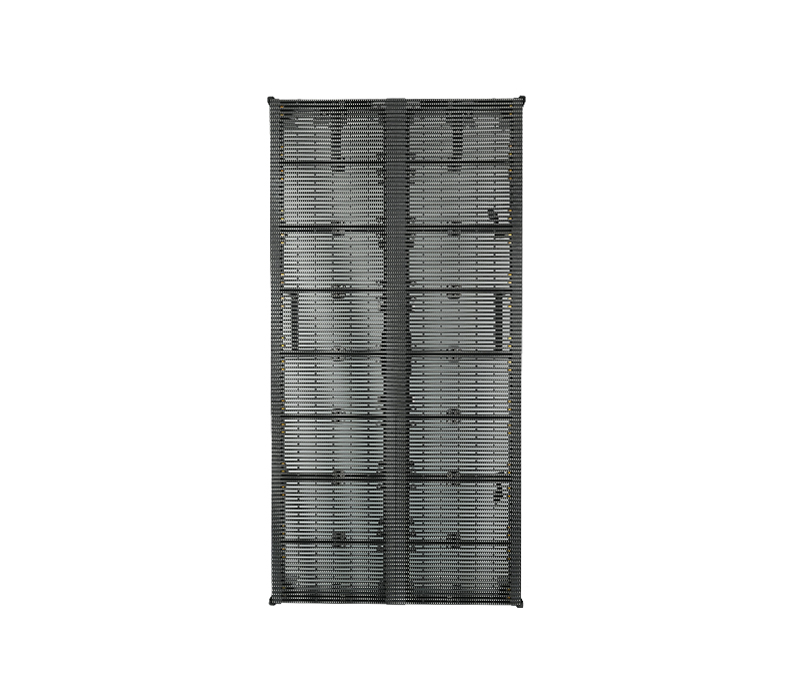

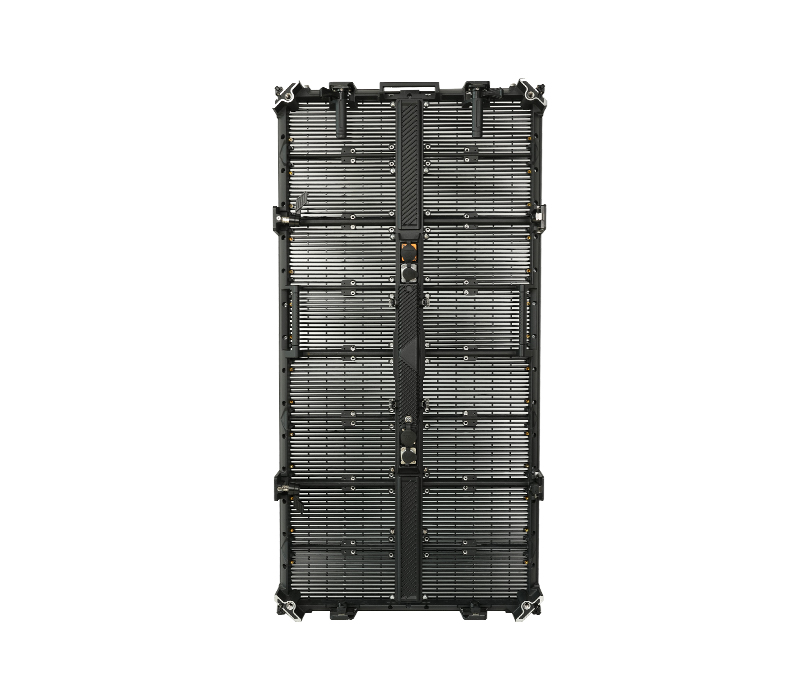

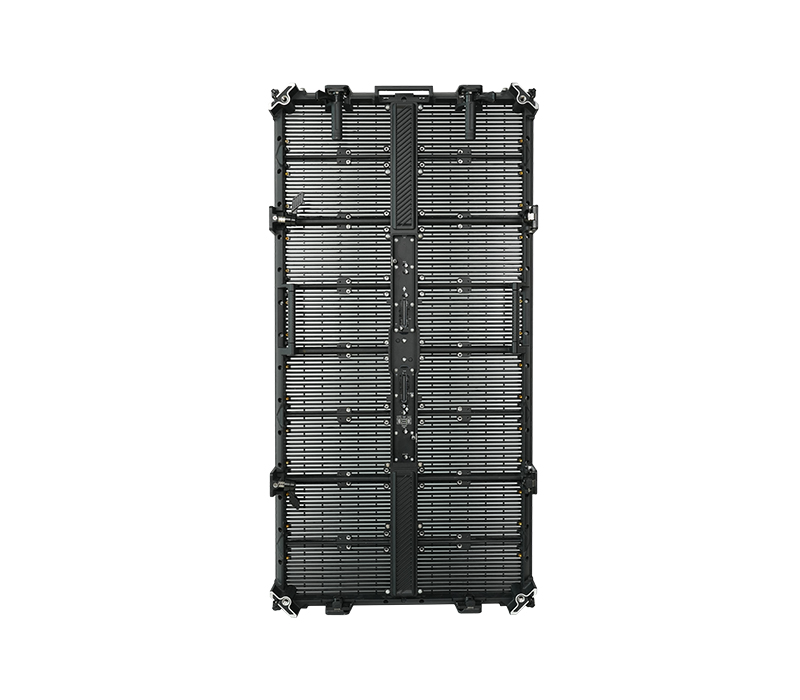

Product Introduction：Transparent led display for rental business or events. die casting panel design, lightweight & high transparency, fast lock design, easy to install
|
|
BGR-3.9-7.8-1 |
BGR-3.9-7.8-2 |
BGR-3.9-7.8-3 |
BGR-3.9-7.8-4 |
|
Physical Pitch |
3.9-7.8mm |
3.9-7.8mm |
3.9-7.8mm |
3.9-7.8mm |
|
Pixel Configuration |
SMD2121 |
SMD2121 |
SMD1921 |
SMD1921 |
|
Pixel Density |
32256px/m2 |
32256px/m2 |
||
|
Module Dimension(WxH) |
500x125mm |
500x125mm |
||
|
Panel Dimension(WxH) |
500x1000mm |
500x1000mm |
||
|
No. of Module/panel(WxH) |
1x8 |
1x8 |
||
|
Module Resolution |
128x16px |
128x16px |
||
|
Panel Resolution |
128x128px |
128x128px |
||
|
Panel Material |
Aluminum |
Aluminum |
||
|
Panel Weight |
<14kg/m2 |
<14kg/m2 |
||
|
Gray Scale |
16bit |
16bit |
||
|
Contrast Ratio |
6000:1 |
6000:1 |
||
|
Avg. Power Consumption |
180w/m2 |
180w/m2 |
||
|
Max. Power Consumption |
560w/m2 |
560w/m2 |
||
|
Operating Temp/Humidity |
-10°C - 60°C / 10% - 60% |
-10°C - 60°C / 10% - 60% |
||
|
Storage Temp/Humidity |
-30°C - 60°C/ 10% - 60% |
-30°C - 60°C/ 10% - 60% |
||
|
Refresh Rate |
7680hz |
7680hz |
||
|
Brightness |
≥600nits |
≥1200nits |
≥1800nits |
≥5500nits |
|
Viewing Angle(H/V) |
160°/140° |
160°/140° |
||
|
Expected Lifetime |
100,000hrs |
100,000hrs |
||
|
Service |
Rear |
Rear |
||
|
IP Rating(Front/Rear) |
IP30 |
IP65/IP54 |
||
|
Certification |
CCC,CE,ETL,RoHS |
CCC,CE,ETL,RoHS |
||
