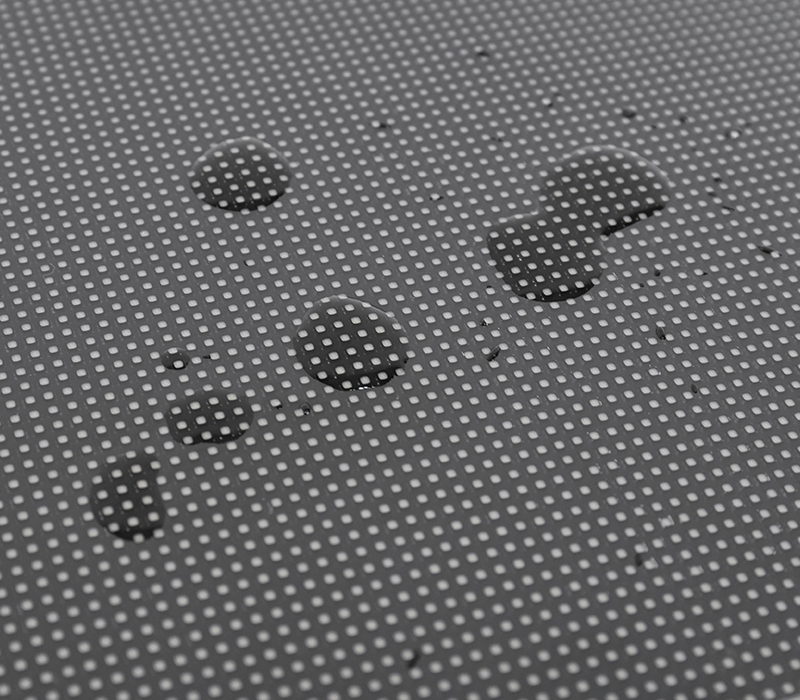

Product Introduction：Soft Rubber Module, Creative Solutions. Convex, Concave or Twisted Available Module For Any Creative Shape and Size Ultra Thin and Lightweight Magnetic Connection for Easy Maintenance
|
|
BS-1.25 |
BS-1.53 |
BS-1.86 |
BS-2 |
BS-2.5 |
|
Physical Pitch |
1.25mm/0.05" |
1.538mm/0.06" |
1.86mm/0.07" |
2mm/0.08" |
2.5mm/0.1" |
|
Pixel Configuration |
SMD1010 |
SMD1212 |
SMD1515 |
SMD1515 |
SMD2121 |
|
Pixel Density |
640000px/m2 |
422500px/m2 |
289000px/m2 |
250000px/m2 |
160000px/m2 |
|
Module Dimension(WxH) |
320x160mm / 12.59"x6.29" |
||||
|
Module Resolution |
256x128px |
208x104px |
172x86px |
160x80px |
128x64px |
|
Gray Scale |
16bit |
||||
|
Contrast Ratio |
4000:1 |
||||
|
Avg. Power Consumption |
10w |
||||
|
Max. Power Consumption |
32w |
||||
|
Operating Temp/Humidity |
-10°C - 60°C / 10% - 60% |
||||
|
Storage Temp/Humidity |
-30°C - 60°C/ 10% - 60% |
||||
|
Refresh Rate |
3840hz |
||||
|
Brightness |
600~800nits |
||||
|
Viewing Angle(H/V) |
160°/140° |
||||
|
Expected Lifetime |
100,000hrs |
||||
|
Service |
Front |
||||
|
IP Rating(Front/Rear) |
IP40/IP21 |
||||
|
Certification |
CCC,CE,ETL,RoHS |
||||
