BHD

Feature     |      Parameter     |   Case









BHD  Series

HD Pixels for Stage

and Fixed Install

● TUV EMC Certificated

● Both Front and Rear Service Available

● High Definition Indoor Display

● 480mm X 480mm Chassis







Unsurpassed Color Uniformity

 Unique color calibration process

● Tight bin selection for LED wavelength

● Deep black levels, contrast ratio 4000:1



Fast Installation and Easy Maintenance

 Truss hanging and ground support both available

● Cable-less between modules

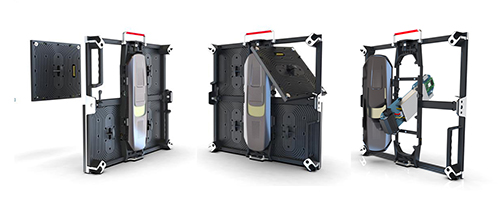

 Front and rear access

 Tools free installation

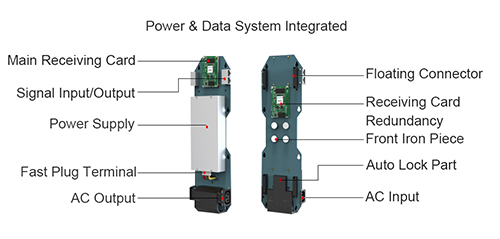

Superior Electrical Features

● Dural signal backup port

● UI LCD monitoring display indicates the status

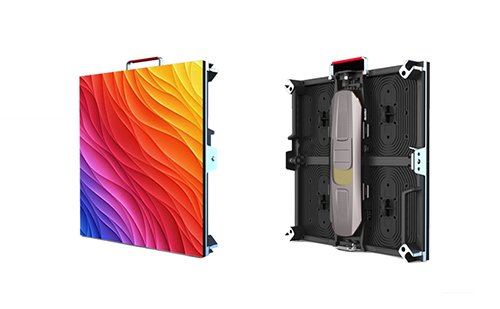

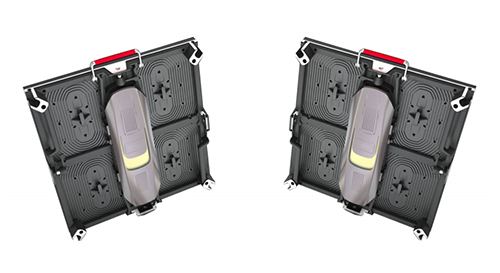

Slim, Light Weight and Quiet

● 480mmx480mm cabinet

● 80mm thickness, 7 KG per cabinet

 Fanless design













BHD-1.5

BHD-1.6

BHD-1.8

BHD-2.5

BHD-3

Physical Pitch

1.579 mm

1.667 mm

1.875 mm

2.5 mm

3 mm

Pixel Configuration

SMD 1010

SMD 1010

SMD 1515

SMD 2121

SMD 2121

Pixel Density

401,956 pixels/m²

360,000 pixels/m²

284,444 pixels/m²

160,000 pixels/m²

110,889 pixels/m²

Module Dimensions (W × H) (mm)

240 × 240

240 × 240

240 × 240

240 × 240

240 × 240

Panel Dimensions (mm)

480 × 480 × 80

480 × 480 × 80

480 × 480 × 80

480 × 480 × 80

480 × 480 × 80

NO.of Modules Per Panel (W × H)

2 × 2

2 × 2

2 × 2

2 × 2

2 × 2

Physical Resolution of Module (W × H)

152 × 152

144 × 144

128 × 128

96 × 96

96 × 96

Physical Resolution of Panel (W × H)

304 × 304

288 × 288

256 × 256

192 × 192

160 × 160

Panel Material

Die-Casting Aluminum

Die-Casting Aluminum

Die-Casting Aluminum

Die-Casting Aluminum

Die-Casting Aluminum

Single Cabinet Weight

7 kg/panel

7 kg/panel

7 kg/panel

7 kg/panel

7 kg/panel

Gray Scale

16 bit

16 bit

16 bit

16 bit

16 bit

Colours

281 trillion

281 trillion

281 trillion

281 trillion

281 trillion

Contrast Ratio

4,000 : 1

4,000 : 1

4,000 : 1

4,000 : 1

4,000 : 1

Average Power Consumption

258 W /m²

264 W /m²

260 W /m²

215 W /m²

235 W /m²

Max Power Consumptionx

715 W/m²

680 W/m²

690 W/m²

640 W/m²

670 W/m²

Operating Temp/Humidity

-10℃-60℃ / 10% -60%

-10℃-60℃ / 10% -60%

-10℃-60℃ / 10% -60%

-10℃-60℃ / 10% -60%

-10℃-60℃ / 10% -60%

Storage Temp/Humidity

-30℃-60℃ / 10%-60%

-30℃-60℃ / 10%-60%

-30℃-60℃ / 10%-60%

-30℃-60℃ / 10%-60%

-30℃-60℃ / 10%-60%

Refresh Rate

> 2,880 Hz

> 2,880 Hz

> 2,880 Hz

> 2,880 Hz

> 2,880 Hz

Srightness

600 - 1,000 nits

600 - 1,000 nits

600 - 1,000 nits

600 - 1,000 nits

600 - 1,000 nits

Horizontal Viewing Angle

160°

160°

160°

160°

160°

Vertical Viewing Angle

140°

140°

140°

140°

140°

Expected Lifetime

100, 000 Hrs

100, 000 Hrs

100, 000 Hrs

100, 000 Hrs

100, 000 Hrs

Servicing

Front / Rear

Front / Rear

Front / Rear

Front / Rear

Front / Rear

IP Rating (Front/Rear)

IP 40 / IP 21

IP 40 / IP 21

IP 40 / IP 21

IP 40 / IP 21

IP 40 / IP 21

Scan Method

1/38 Scan

1/32 Scan

1/38 Scan

1/32 Scan

1/20 Scan
