Indoor Rental LED Display, Varied Curve Options

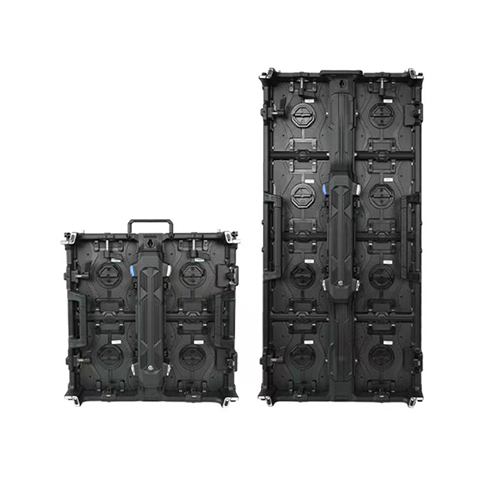

● Die Casting 500mm x 500mm or 500mm x 1000mm
● Flat, Curve, 90° Corner, Curvilinear
● Both Front and Rear Access
Fast Installation and Easy Maintenance
● Truss Hanging and Ground Stacking
● Cable-less between Modules
● Magnetic Modules, Both Front and Rear Access

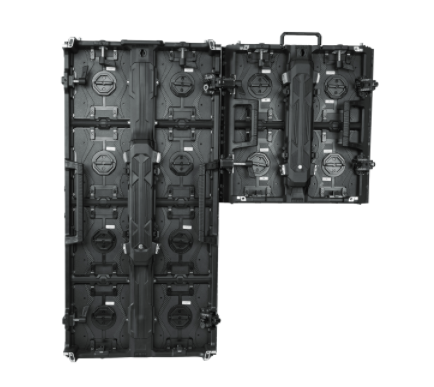

● 500mm and 1000mm Cabinets Mixed

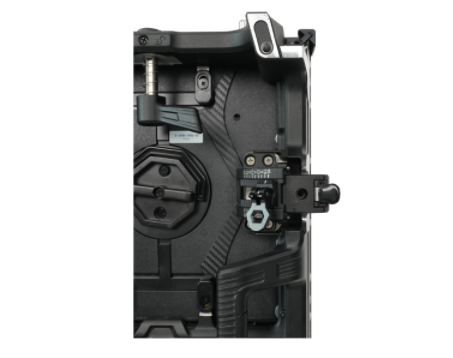

Concave and Convex Curve Option
● -10° - +10° Curve able
● Precise Curve Lock
90° Corner Shape Option

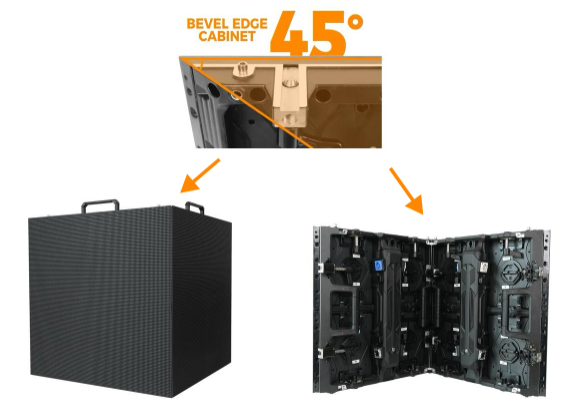

● 45° Bevel Edge Cabinet Option
● Assemble for 90° Corner Shape

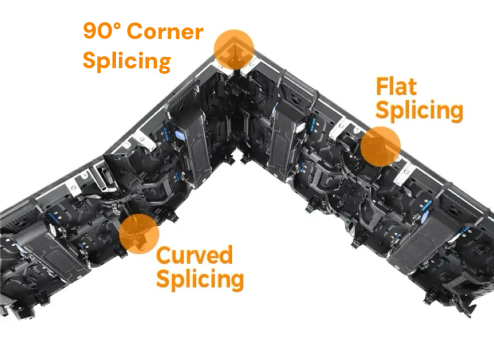

Mixed Variable Curve Options
● Flat, Curve, 90° Corner Mixed
BIR-C-2X
BIR-C-2
BIR-C-3
Physical Pitch(mm)
2.6mm
2.97mm
3.91mm
Pixel Configuration
SMD2121
Pixel Density
147,456 pixels/㎡
112,896 pixels/㎡
65.536 pixels/㎡
Module Dimensions (W × H) (mm)
250x250
Panel Dimensions (mm)
500x500x80/500x1000x80
No. of Modules Per Panel (W × H)
2x2/2x4
Physical Resolution of Module (W x H)
96x96
84x84
64x64
Physical Resolution of Panel (W x H)
192x192/192x384
168x168/168x336
128x128/128x256
Panel Material
Die-casting Aluminum
Single Cabinet Weight
7/14 kg / panel
Gray Scale
16 bit
Colours
281 trillion
Contrast Ratio
4,000:1
Average Power Consumption
400 W / ㎡
325 W / ㎡
Max Power Consumption
800 W / ㎡
780 W / ㎡
Operating Temp/Humidity
-10°-60℃/10%-60%
Storage Temp/Humidity
-30°-60℃/10%-60%
Refresh Rate
3,840 Hz
Brightness
≥1,000nits
Horizontal Viewing Angle
160°
Vertical Viewing Angle
140°
Expected Lifetime
100,000 Hrs
Max Stacking
20/10
Max Hanging
Servicing
Front / Rear
IP Rating(Front/Rear)
IP40/IP21
Scan Method
1/32 Scan
1/28 Scan
1/16 Scan
