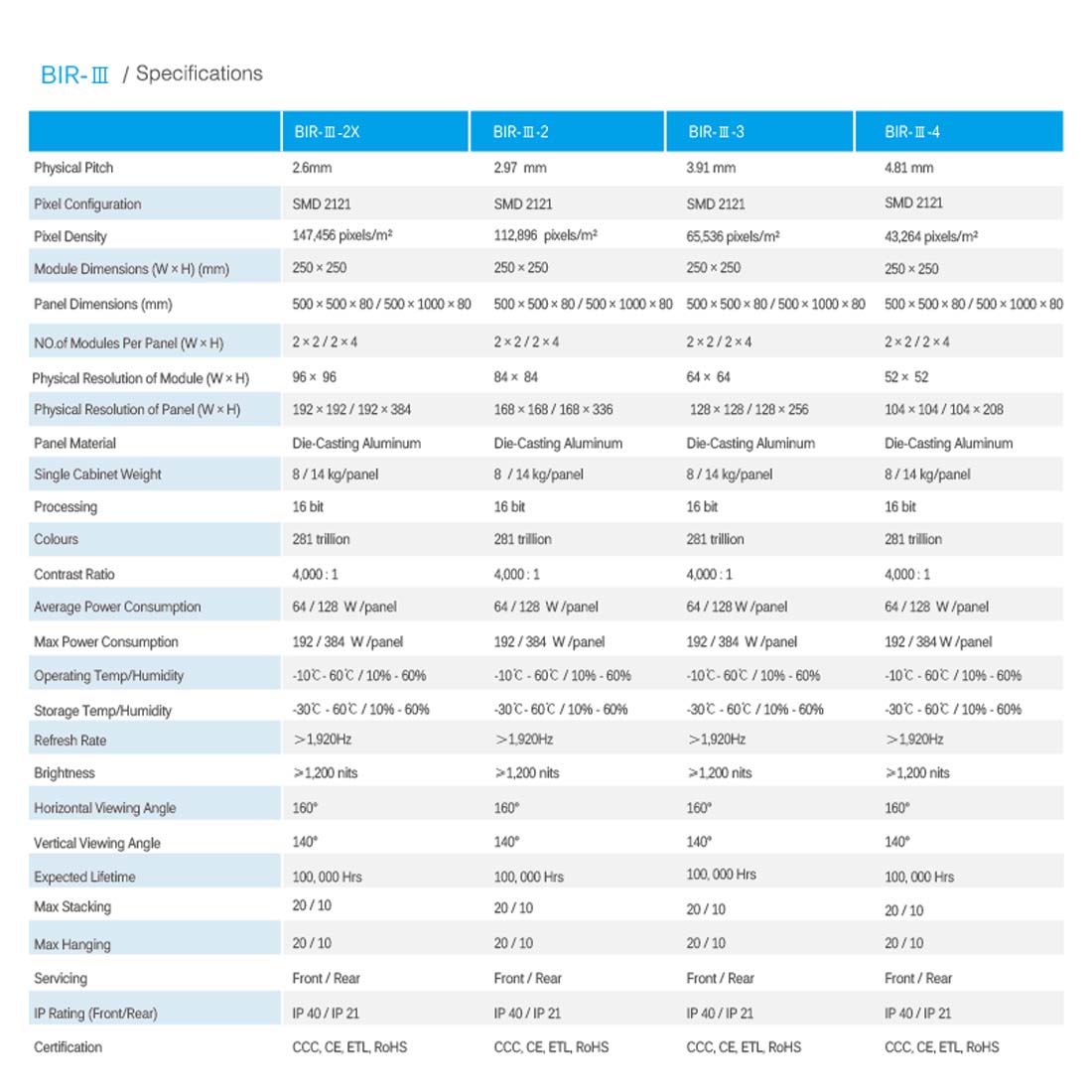

BIR-III-2X

BIR-III-2

BIR-III-3

Physical Pitch(mm)

2.6mm

2.97mm

3.91mm

Pixel Configuration

SMD2121

SMD2121

SMD2121

Pixel Density

147,456 pixels/㎡

112,896 pixels/㎡

65.536 pixels/㎡

Module Dimensions (W × H) (mm)

250x250

250x250

250x250

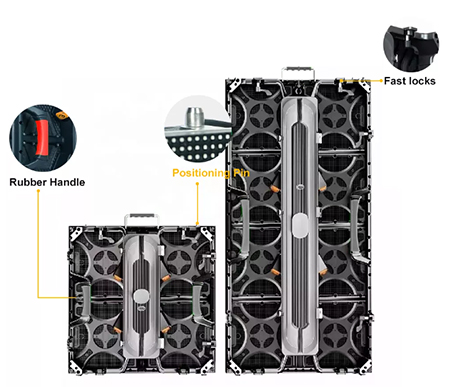

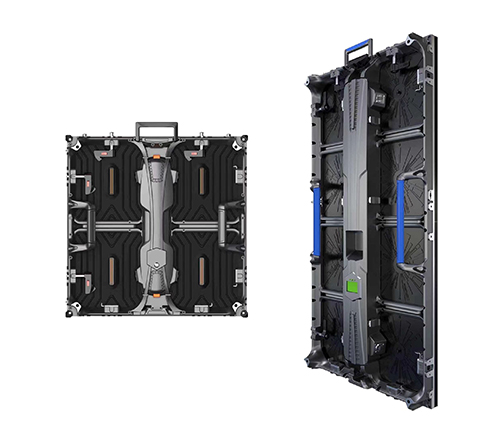

Panel Dimensions (mm)

500x500x80/500x1000x80

500x500x80/500x1000x80

500x500x80/500x1000x80

No. of Modules Per Panel (W × H)

2x2/2x4

2x2/2x4

2x2/2x4

Physical Resolution of Module (W x H)

96x96

84x84

64x64

Physical Resolution of Panel (W x H)

192x192/192x384

168x168/168x336

128x128/128x256

Panel Material

Die-casting Aluminum

Die-casting Aluminum

Die-casting Aluminum

Single Cabinet Weight

7/14 kg / panel

7/14 kg / panel

7/14 kg / panel

Gray Scale

16 bit

16 bit

16 bit

Colours

281 trillion

281 trillion

281 trillion

Contrast Ratio

4,000:1

4,000:1

4,000:1

Average Power Consumption

400 W / ㎡

400 W / ㎡

325 W / ㎡

Max Power    Consumption

800 W / ㎡

800 W / ㎡

780 W / ㎡

Operating Temp/Humidity

-10°-60℃/10%-60%

-10°-60℃/10%-60%

-10°-60℃/10%-60%

Storage Temp/Humidity

-30°-60℃/10%-60%

-30°-60℃/10%-60%

-30°-60℃/10%-60%

Refresh Rate

>1,920 Hz

>1,920 Hz

>1,920 Hz

Brightness

≥1,200nits

≥1,200nits

≥1,200nits

Horizontal Viewing Angle

160°

160°

160°

Vertical Viewing Angle

140°

140°

140°

Expected Lifetime

100,000 Hrs

100,000 Hrs

100,000 Hrs

Max Stacking

20/10

20/10

20/10

Max Hanging

20/10

20/10

20/10

Servicing

Front / Rear

Front / Rear

Front / Rear

IP Rating(Front/Rear)

IP40/IP21

IP40/IP21

IP40/IP21

Scan Method

1/32 Scan

1/28 Scan

1/16 Scan
