BIR-II

Feature     |      Parameter     |   Case


















BIR-II Series

User Friendly,

Indoor Rental LED Display

● Lightweight, Large Format Cabinet

● 500mmx500mm or 500mmx1000mm Cabinet

● High Definition Indoor Display

● Curvilinear, Concave, Convex

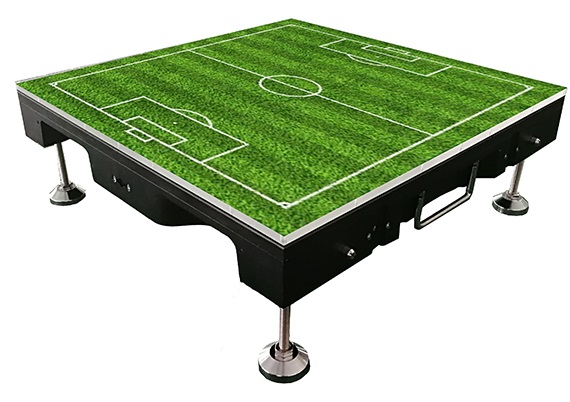

● Floor Screen Available







Unsurpassed Color Uniformity

 Unique color calibration process

 Tight bin selection for LED wavelength

● Deep black levels, contrast ratio 4000:1



User Friendly and Fast Installation

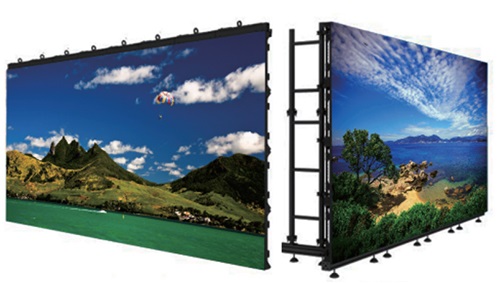

 Truss hanging and ground support both available

● Fast Lock and handle designed user friendly

 Front and rear access

 Tools free installation

























Slim, Light Weight and Quiet

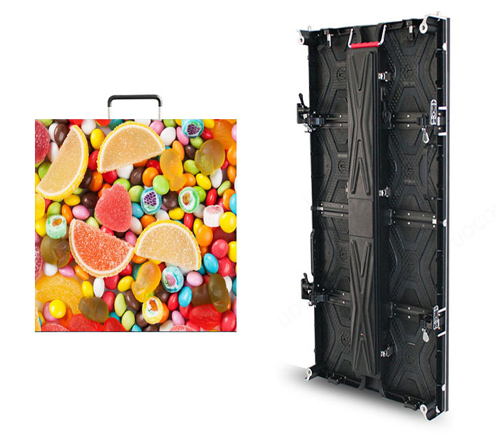

● 500mmx500mm or 500mmx1000mm cabinet

● 80mm thickness, 7 KG per cabinet

 Fanless design

 1 person job

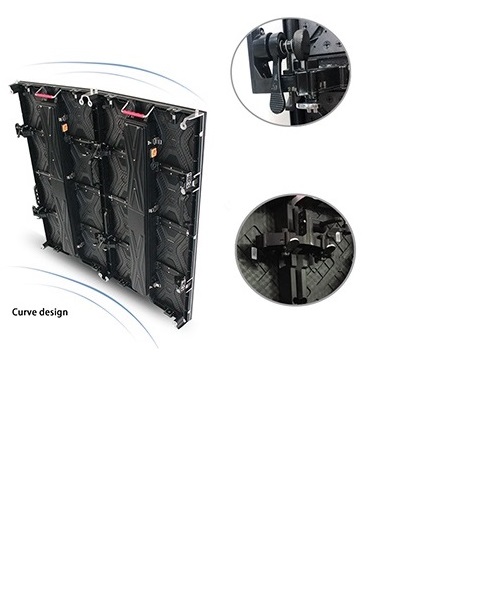

Smart Concave and Convex

● Both 500mmx500mm and 500mmx1000mm cabinets are

    arc-able

● 0°-10° concave and convex degree

























BIR-II-2X

BIR-II-2

BIR-II-3

BIR-II-4

Physical Pitch(mm)

2.6mm

2.97mm

3.91mm

4.81

Pixel Configuration

SMD2121

SMD2121

SMD2121

SMD2121

Pixel Density

147,456 pixels/㎡

112,896 pixels/㎡

65.536 pixels/㎡

43.264 pixels/㎡

Module Dimensions (W × H) (mm)

250x250

250x250

250x250

250x250

Panel Dimensions (mm)

500x500x80/500x1000x80

500x500x80/500x1000x80

500x500x80/500x1000x80

500x500x80/500x1000x80

No. of Modules Per Panel (W × H)

2x2/2x4

2x2/2x4

2x2/2x4

2x2/2x4

Physical Resolution of Module (W x H)

96x96

84x84

64x64

52x52

Physical Resolution of Panel (W x H)

192x192/192x384

168x168/168x336

128x128/128x256

104x104/104x208

Panel Material

Die-casting Aluminum

Die-casting Aluminum

Die-casting Aluminum

Die-casting Aluminum

Single Cabinet Weight

8/14 kg / panel

8/14 kg / panel

8/14 kg / panel

8/14 kg / panel

Gray Scale

16 bit

16 bit

16 bit

16 bit

Colours

281 trillion

281 trillion

281 trillion

281 trillion

Contrast Ratio

4,000:1

4,000:1

4,000:1

4,000:1

Average Power Consumption

400 W / ㎡

400 W / ㎡

325 W / ㎡

310 W / ㎡

Max Power    Consumption

800 W / ㎡

800 W / ㎡

780 W / ㎡

750 W / ㎡

Operating Temp/Humidity

-10°-60℃/10%-60%

-10°-60℃/10%-60%

-10°-60℃/10%-60%

-10°-60℃/10%-60%

Storage Temp/Humidity

-30°-60℃/10%-60%

-30°-60℃/10%-60%

-30°-60℃/10%-60%

-30°-60℃/10%-60%

Refresh Rate

>1,920 Hz

>1,920 Hz

>1,920 Hz

>1,920 Hz

Brightness

≥1,200nits

≥1,200nits

≥1,200nits

≥1,200nits

Horizontal Viewing Angle

160°

160°

160°

160°

Vertical Viewing Angle

140°

140°

140°

140°

Expected Lifetime

100,000 Hrs

100,000 Hrs

100,000 Hrs

100,000 Hrs

Max Stacking

20/10

20/10

20/10

20/10

Max Hanging

20/10

20/10

20/10

20/10

Servicing

Front / Rear

Front / Rear

Front / Rear

Front / Rear

IP Rating(Front/Rear)

IP40/IP21

IP40/IP21

IP40/IP21

IP40/IP21

Scan Method

1/32 Scan

1/28 Scan

1/16 Scan

1/13 Scan
