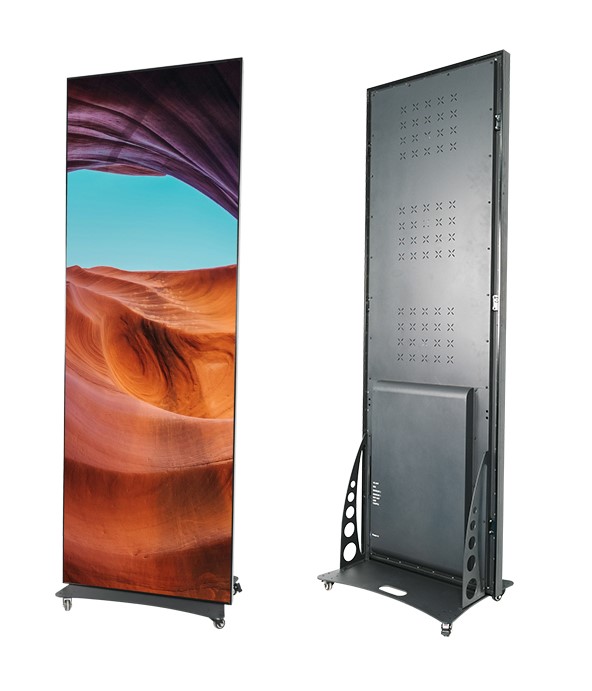

	BP Series Slim, Form Changeable Digital Ads Poster ● Slim Appearance ● Multiple Installation and Form Changeable ● Various Signal Operations

Ultra Slim and Lightweight ● Ultra slim edge 6mm, display thickness 45mm ● Net weight 38kg per set	Portable and Move-able ● Standing and stacking options ● Wheels for easy transportation



Multiple and Fast Installation ● Variable installations, eg:hanging, wall mounting, splicing ● Optional accessories for fast installation ● Available for horizontal assembling as a bigger screen	Superior Electrical Features ● Refresh rate 3840Hz ● 160 degree viewing angle ● 4000:1 contrast ratio ● Max. / Avg. power 600W/200W

	BP-1.2	BP-1.5	BP-1.8	BP-2.5
Physical Pitch	1.25mm	1.538mm	1.86mm	2.5mm
Pixel Configuration	SMD 1010	SMD 1212	SMD 1515	SMD 2121
Pixel Density	640,000pixels/㎡	422,753pixels/㎡	289,050pixels/㎡	160,000pixels/㎡
Module Dimensions (W × H) (mm)	320×160	320×160	320×160	320×160
Whole Set Dimensions (W × H) (mm)	640×1920×35	640×1920×35	640×1920×35	640×1920×35
No. of Modules Per Panel (W × H)	2×12	2×12	2×12	2×12
Physical Resolution of Module (W x H)	256×128	208×104	172×86	128×64
Physical Resolution of Whole Set (W x H)	512×1,536	416×1,248	344*1,032	256×768
Panel Material	Aluminum	Aluminum	Aluminum	Aluminum
Single Cabinet Weight	48kg	48kg	48kg	48kg
Gray Scale	16 bit	16 bit	16 bit	16 bit
Colours	281 trillion	281 trillion	281 trillion	281 trillion
Contrast Ratio	4,000:1	4,000:1	4,000:1	4,000:1
Average Power Consumption	200 W / set	200 W / set	200 W / set	160 W / set
Max Power Consumption	600 W / set	600 W / set	390 W / set	480 W / set
Scan Method	1/32 Scan	1/32 Scan	1/27 Scan	1/32 Scan
Operating Temp/Humidity	-10°-60℃/10%-60%	-10°-60℃/10%-60%	-10°-60℃/10%-60%	-10°-60℃/10%-60%
Storage Temp/Humidity	-30°-60℃/10%-60%	-30°-60℃/10%-60%	-30°-60℃/10%-60%	-30°-60℃/10%-60%
Brightness	>600nits	>600nits	>600nits	>600nits
Refresh Rate	≥3840 Hz	≥3,840 Hz	≥3,840 Hz	≥3,840 Hz
Vertical Viewing Angle	160°	160°	160°	160°
Horizontal Viewing Angle	140°	140°	140°	140°
IP Rating (Front/Rear)	IP40	IP40	IP40	IP40
Frame Rate	60 fps	60 fps	60 fps	60 fps
Expected Lifetime	100,000 Hrs	100,000 Hrs	100,000 Hrs	100,000 Hrs
Bezel	6mm	6mm	6mm	6mm
