BOR-C,Shenzhen Bako Vision Technology Co., LTD

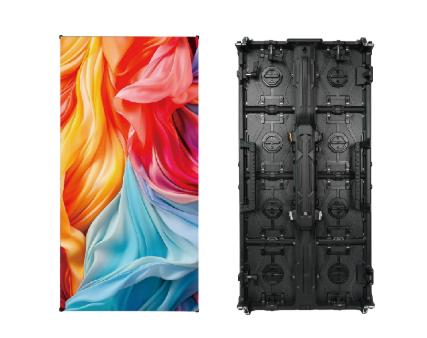

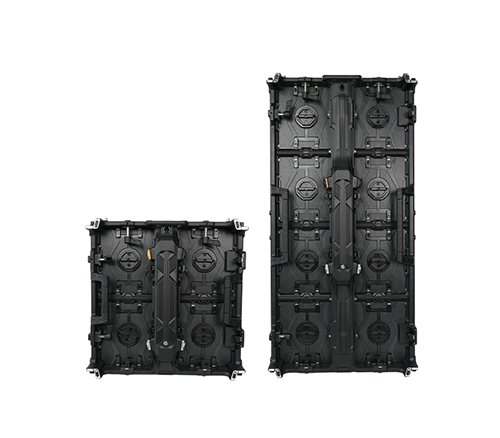

	BOR-C Series Outdoor Rental Display, Durable, Waterproof ● Die Casting 500mm x 500mm and 500mm x 1000mm ● Standard IP65 Waterproof ● Flat, Curve, 90° Corner, Curvilinear ● Both Front and Rear Access

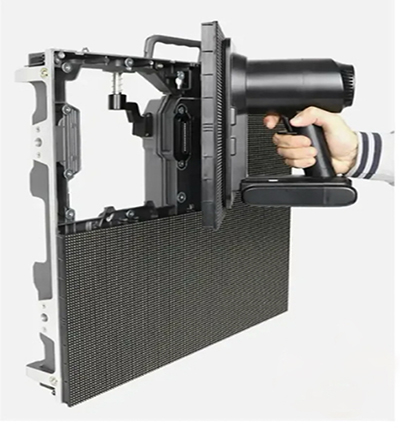

High Resolution, Vivid Image, Waterproof ● Standard IP65 Waterproof Level ● 7680Hz Refresh Rate, Stunning Visual Effet ● High Brightness Options ● Durable and Stable	Fast Installation and Easy Maintenance ● Truss Hanging and Ground Stacking ● Cable-less between Modules ● Magnetic Modules, Both Front and Rear Access ● 500mm and 1000mm Cabinets Mixed ● Tools free installation

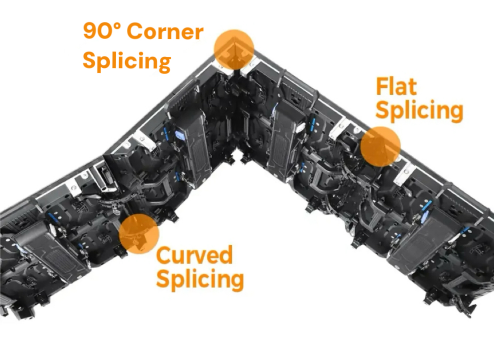

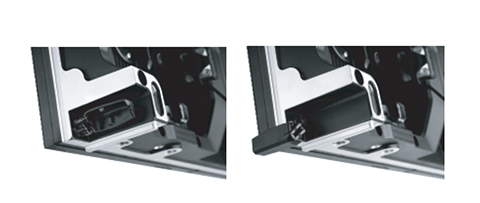

Variable Curve Options ● -10° - +10° Curve able ● 45° Bevel Edge Cabinet Option ● Flat, Curve, 90° Corner Mixed	Crash Proof Design ● Corner Protection ● Avoid crashing when packing and assembling ● Easy to stand on ground or table for demonstration

	BOR-C-2	BOR-C-3	BOR-C-4
Physical Pitch(mm)	2.97 mm	3.91 mm	4.81 mm
Pixel Configuration	SMD 1921	SMD 1921	SMD 2525/2727
Pixel Density	112,896 pixels/m²	65,536 pixels/m²	43,264 pixels/m²
Module Dimensions (W × H) (mm)	250x250	250x250	250x250
Panel Dimensions (mm)	500x500x80/500x1000x80	500x500x80/500x1000x80	500x500x80/500x1000x80
No. of Modules Per Panel (W × H)	22/24	22/24	22/24
Physical Resolution of Module (W x H)	84 × 84	64 × 64	52 × 52
Physical Resolution of Panel (W x H)	168 × 168 / 168 × 336	128 × 128 / 128 × 256	104 × 104 / 104 × 208
Panel Material	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum
Single Cabinet Weight	8 / 14 kg/panel	8 / 14 kg/panel	8 / 14 kg/panel
Gray Scale	16 bit	16 bit	16 bit
Colours	281 trillion	281 trillion	281 trillion
Contrast Ratio	4,000:1	4,000:1	4,000:1
Average Power Consumption	400 W / ㎡	400 W / ㎡	325 W / ㎡
Max Power Consumption	800 W / ㎡	800 W / ㎡	780 W / ㎡
Operating Temp/Humidity	-20°-60℃/10%-60%	-20°-60℃/10%-60%	-20°-60℃/10%-60%
Storage Temp/Humidity	-30°-60℃/10%-60%	-30°-60℃/10%-60%	-30°-60℃/10%-60%
Refresh Rate	7,680 Hz	7,680 Hz	7,680 Hz
Brightness	≥4,000nits	≥4,000nits	≥4,000nits
Horizontal Viewing Angle	160°	160°	160°
Vertical Viewing Angle	140°	140°	140°
Expected Lifetime	100,000 Hrs	100,000 Hrs	100,000 Hrs
Max Stacking	20/10	20/10	20/10
Max Hanging	20/10	20/10	20/10
Servicing	Front / Rear	Front / Rear	Front / Rear
IP Rating(Front/Rear)	IP65/IP54	IP65/IP54	IP65/IP54
Scan Method	1/28 Scan	1/16 Scan	1/13 Scan

BOR-C
