BOR-M Series

Modular and Independent Power & Signal Box

● Independent Modular Power & Signal Design

● Strong Waterproof Connectors for Outdoor

● Fast Assemble and Easy Maintenance

● Concave, Convex, Curvilinear









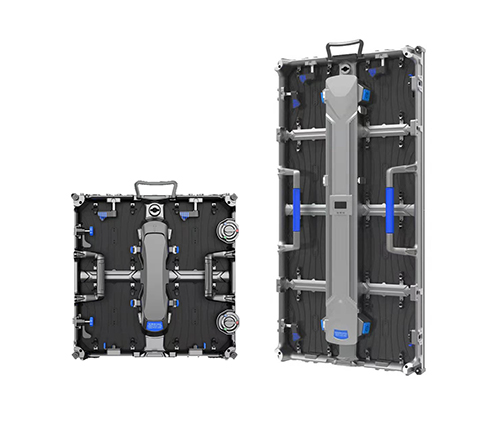

Modular Power and Signal Integration

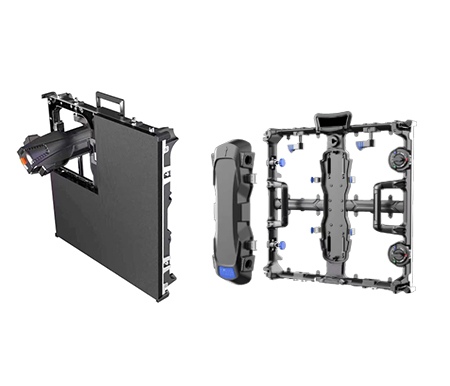

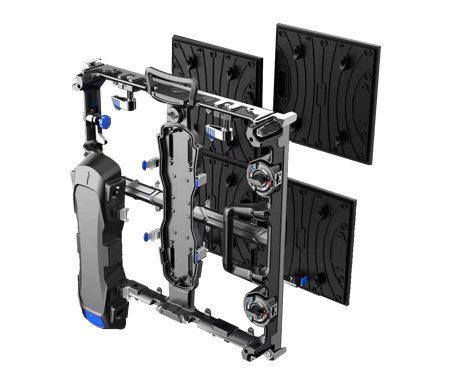

 Modular power and signal box replaceable

 Fast and tools free replace and assemble





Fully Front or Rear Accessible

 Both fully front or rear service

● Magnetic modules, Cable-less Connection

 Tools-free installation and dismantling

 Easy maintenance





















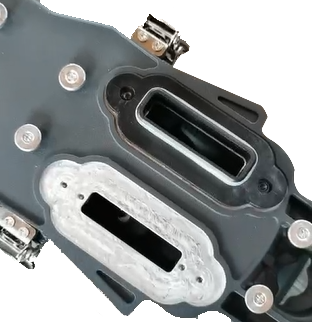

Strong Waterproof Design

● IP65 for outdoor use

● Reinforced waterproof connectors

 Robust for 24/7 working mode

















Smart Concave and Convex

● Both 500mmx500mm and 500mmx1000mm cabinets are

    arc-able

● -10°-+10° concave and convex degree











BOR-M-3

BOR-M-4

BOR-M-5

Physical Pitch(mm)



3.91 mm

4.81 mm

5.95 mm

Pixel Configuration



SMD 1921

SMD 2525 / 2727

SMD 2525/2727

Pixel Density



65,536 pixels/m²

43,264 pixels/m²

28,224 pixels/m²

Module Dimensions (W × H) (mm)



250x250

250x250

250x250

Panel Dimensions (mm)



500x500x80/500x1000x80

500x500x80/500x1000x80

500x500x80/500x1000x80

No. of Modules Per Panel (W × H)



2*2/2*4

2*2/2*4

2*2/2*4

Physical Resolution of Module (W x H)



64 × 64

52 × 52

42 × 42

Physical Resolution of Panel (W x H)



128 × 128 / 128 × 256

104 × 104 / 104 × 208

 84 × 84 / 84 × 168

Panel Material



Die-casting Aluminum

Die-casting Aluminum

Die-casting Aluminum

Single Cabinet Weight



9 / 15 kg/panel

9 / 15 kg/panel

9 / 15 kg/panel

Gray Scale



16 bit

16 bit

16 bit

Colours



281 trillion

281 trillion

281 trillion

Contrast Ratio



4,000:1

4,000:1

4,000:1

Average Power Consumption



400 W / ㎡

320 W / ㎡

310 W / ㎡

Max Power    Consumption



800 W / ㎡

780 W / ㎡

750 W / ㎡

Operating Temp/Humidity



-20°-60℃/10%-60%

-20°-60℃/10%-60%

-20°-60℃/10%-60%

Storage Temp/Humidity



-30°-60℃/10%-60%

-30°-60℃/10%-60%

-30°-60℃/10%-60%

Refresh Rate



>1,920 Hz

>1,920 Hz

>1,920 Hz

Brightness



-20°-60℃/10%-60%

≥6,000nits

≥6,000nits

Horizontal Viewing Angle



160°

160°

160°

Vertical Viewing Angle



140°

140°

140°

Expected Lifetime



100,000 Hrs

100,000 Hrs

100,000 Hrs

Max Stacking



20/10

20/10

20/10

Max Hanging



20/10

20/10

20/10

Servicing



Front / Rear

Front / Rear

Front / Rear

IP Rating(Front/Rear)



IP65/IP54

IP65/IP54

IP65/IP54

Scan Method



1/16 Scan

1/13 Scan

1/7 Scan
