BOR-II

Feature     |      Parameter     |   Case

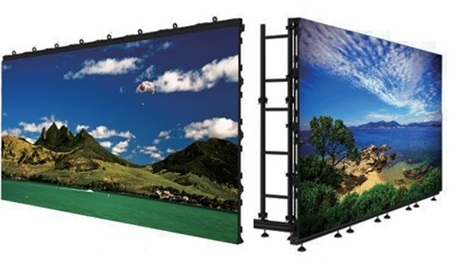

BOR-II Series

High Brightness, High Definition,

Outdoor Rental LED Display

● Slim and Large Format Cabinet

● Ideal for Touring Application

● High Definition outdoor Display

● Curvilinear, Concave, Convex

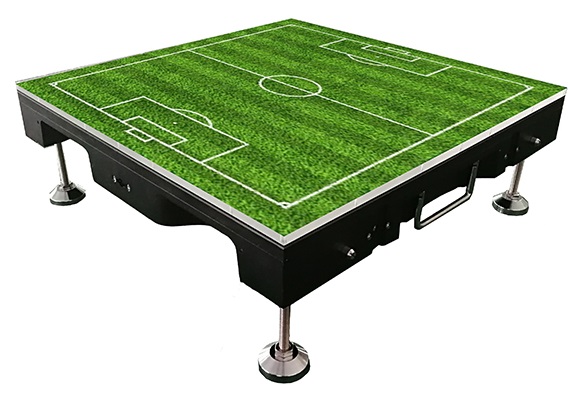

● Floor Screen Available

Outdoor Rated

 IP65 rating waterproof

 Tight bin selection for LED wavelengthSuitable brightness adjustable for outdoor day and night

● Deep black levels, contrast ratio 4000:1





User Friendly and Fast installation

 Truss hanging and ground support both available

● Fast Lock and handle designed user friendly

 Front and rear access

 Tools free installation















Slim, Light Weight and Quiet

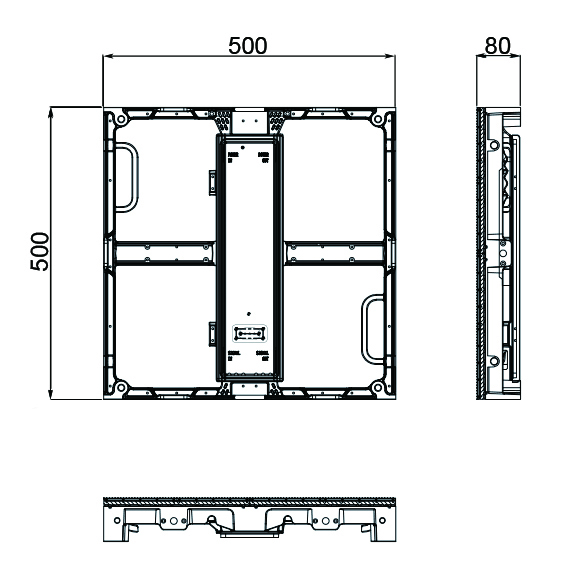

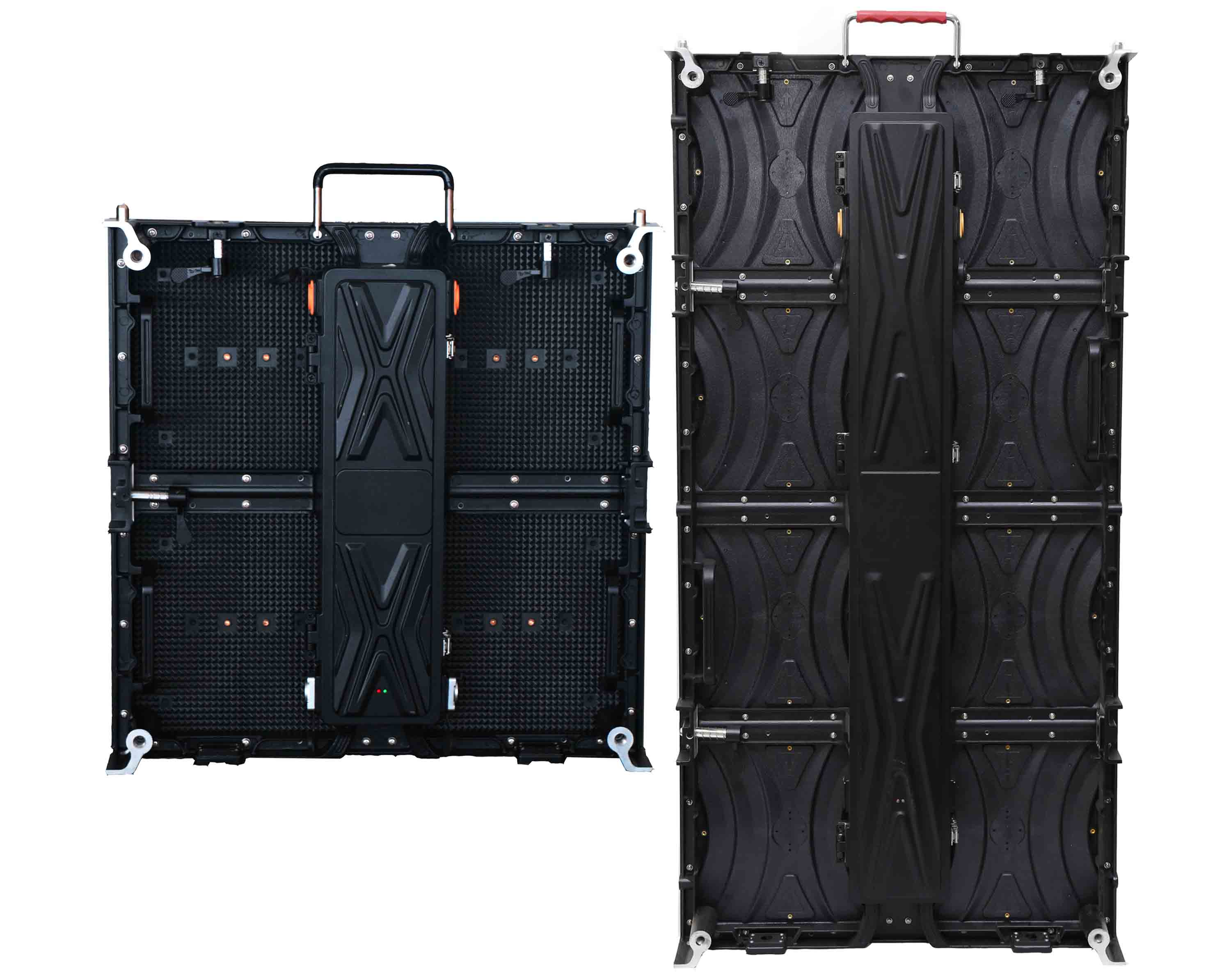

● 500mmx500mm or 500mmx1000mm cabinet

● 80mm thickness, 7 KG per cabinet

 Fanless design

 1 person job

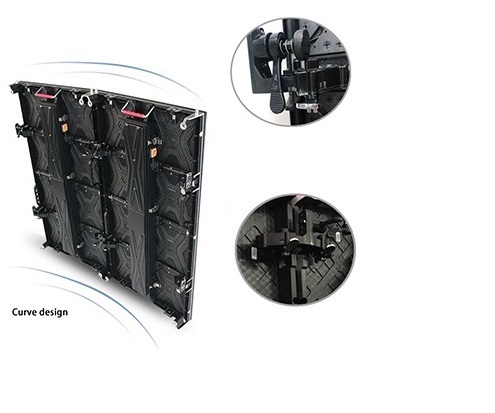

Smart Concave and Convex

● Both 500mmx500mm and 500mmx1000mm cabinets are

    arc-able

● 0°-10° concave and convex degree



























BOR-Ⅱ-3

BOR-Ⅱ-4

BOR-Ⅱ-5

BOR-Ⅱ-6

Physical Pitch(mm)

3.91 mm

4.81 mm

5.95 mm

6.25 mm

Pixel Configuration

SMD 1921

SMD 2525 / 2727

SMD 2525 / 2727

SMD 2727

Pixel Density

65,536 pixels/m²

43,264 pixels/m²

28,224 pixels/m²

25,600 pixels/m²

Module Dimensions (W × H) (mm)

250x250

250x250

250x250

250x250

Panel Dimensions (mm)

500x500x80/500x1000x80

500x500x80/500x1000x80

500x500x80/500x1000x80

500x500x80/500x1000x80

No. of Modules Per Panel (W × H)

2x2/2x4

2*2/2*4

2*2/2*4

2*2/2*4

Physical Resolution of Module (W x H)

64 × 64

52 × 52

42 × 42

40 × 40

Physical Resolution of Panel (W x H)

128 × 128 / 128 × 256

104 × 104 / 104 × 208

84 × 84 / 84 × 168

 80 × 80 / 80 × 160

Panel Material

Die-casting Aluminum

Die-casting Aluminum

Die-casting Aluminum

Die-casting Aluminum

Single Cabinet Weight

9 / 15 kg/panel

9 / 15 kg/panel

9 / 15 kg/panel

9 / 15 kg/panel

Gray Scale

16 bit

16 bit

16 bit

16 bit

Colours

281 trillion

281 trillion

281 trillion

281 trillion

Contrast Ratio

4,000:1

4,000:1

4,000:1

4,000:1

Average Power Consumption

400 W / ㎡

325 W / ㎡

310 W / ㎡

300 W / ㎡

Max Power    Consumption

800 W / ㎡

780 W / ㎡

750 W / ㎡

750 W / ㎡

Operating Temp/Humidity

-20°-60℃/10%-60%

-20°-60℃/10%-60%

-20°-60℃/10%-60%

-20°-60℃/10%-60%

Storage Temp/Humidity

-30°-60℃/10%-60%

-30°-60℃/10%-60%

-30°-60℃/10%-60%

-30°-60℃/10%-60%

Refresh Rate

>1,920 Hz

>1,920 Hz

>1,920 Hz

>1,920 Hz

Brightness

≥4,0000nits

-20°-60℃/10%-60%

≥6,000nits

≥6,000nits

Horizontal Viewing Angle

160°

160°

160°

160°

Vertical Viewing Angle

140°

140°

140°

140°

Expected Lifetime

100,000 Hrs

100,000 Hrs

100,000 Hrs

100,000 Hrs

Max Stacking

20/10

20/10

20/10

20/10

Max Hanging

20/10

20/10

20/10

20/10

Servicing

Front / Rear

Front / Rear

Front / Rear

Front / Rear

IP Rating(Front/Rear)

IP65/IP54

IP65/IP54

IP65/IP54

IP65/IP54

Scan Method

1/16 Scan

1/13 Scan

1/7 Scan

1/18 Scan
