BOR-Ⅰ

Feature     |      Parameter     |   Case







BOR-Ⅰ Series

Strength and Beauty,

Outdoor Rental LED Display

● TUV Certificated and Reddot Awarded

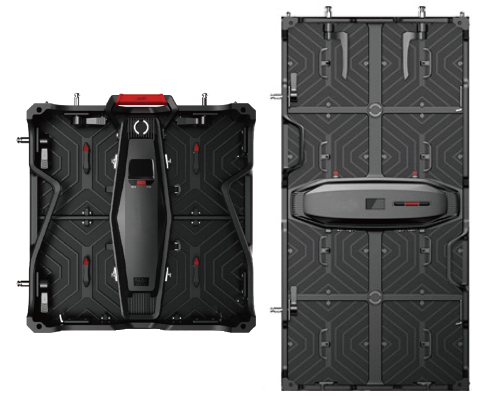

● Cabinet 500mmx500mm or 500mmx1000mm

● Curvilinear, Concave, Convex

● Front and Rear Access



  •







Outdoor Rated

● Outdoor Waterproof with IP65

● Suitable brightness adjustable for outdoor day and night

● Deep black levels, contrast ratio 4000:1

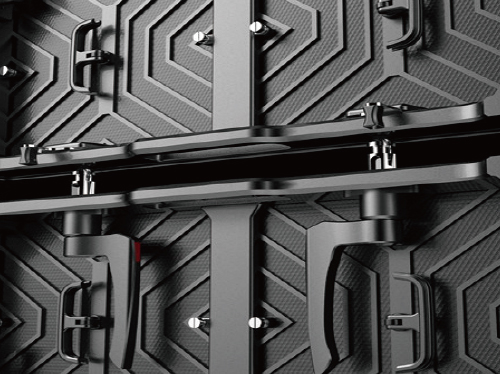

Fast Installation and Easy Maintenance

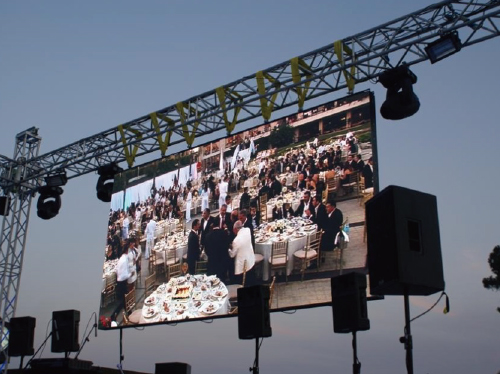

● Truss hanging and ground support both available

● Cable-less between modules

● Front and rear access

● Tools free installation











Slim, Light Weight and Quiet

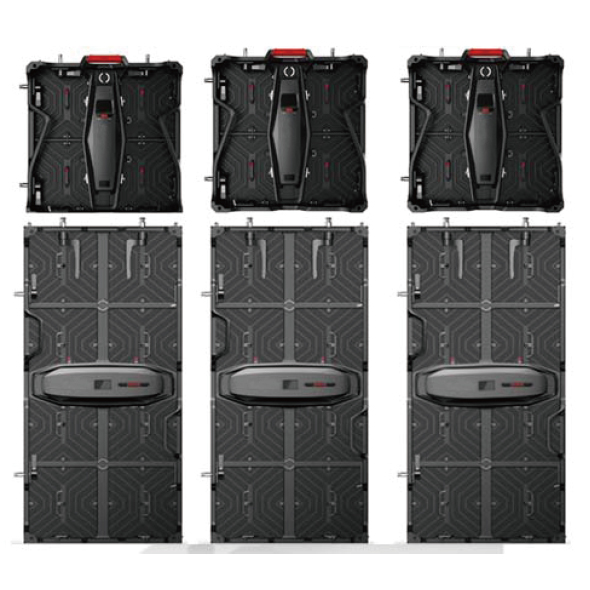

● 500mmx500mm or 500mmx1000mm options

● 80mm thickness

● Fanless design

Superior Electrical Features

● Dual signal backup port

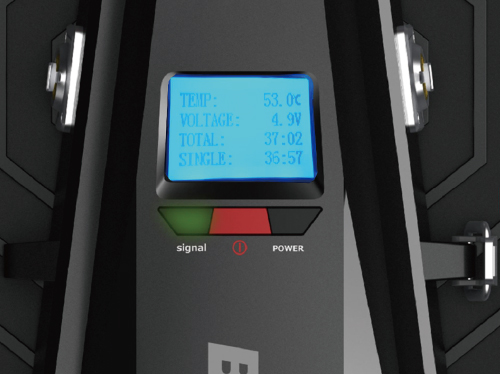

● UI LCD monitoring display indicates the status











BOR-I-3

BOR-I-4

BOR-I-5

BOR-I-6

Physical Pitch

3.91mm

4.81 mm

5.95mm

6.25 mm

Pixel Configuration

SMD 1921

SMD 2525

SMD 2525

SMD 2727

Pixel Density

65536 pixels/m²

43264 pixels/m²

28224pixels/m²

25600 pixels/m²

Module Dimensions (W × H) (mm)

250 × 250 / 250×500

250 × 250 / 250×500

250 × 250 / 250×500

250 × 250 / 250×500

Panel Dimensions (mm)

500 × 500 × 80

500 × 1000 × 80

500 × 500 × 80

500 × 1000 × 80

500 × 500 × 80  500 × 1000 × 80

500 × 500 × 80

500 × 1000 × 80

NO .of Modules Per Panel    (W × H)

2 × 2

2 × 2

2 × 2

2 × 2

Physical Resolution of Module (W × H)

64×64/64×128

52×52/52×104

42×42/42×84

40×40/40×80

Physical Resolution of Panel (W × H)

128×128/128×256

104×104/104×208

84×84/84×168

80×80/80×160

Panel Material

Die-Casting Aluminum

Die-Casting Aluminum

Die-Casting Aluminum

Die-Casting Aluminum

Single Cabinet Weight

9/ 15 kg/panel

9/ 15 kg/panel

9/ 15 kg/panel

9/ 15 kg/panel

Gray Scale

14-16 bit

14-16 bit

14-16 bit

14-16 bit

Colors

281 trillion

281 trillion

281 trillion

281 trillion

Contrast Ratio

4,000: 1

4,000: 1

4,000: 1

4,000: 1

Average Power Consumption

75 /150 W/m²

75 /150 W/m²

75 /150 W/m²

75 /150 W/m²

Max Power Consumption

225 /550 W/m²

225 /550 W/m²l

225 /550 W/m²

225 /550 W/m²

Operating Temp/Humidity

-20ºC - 60ºC / 10% - 60%

-20ºC - 60ºC / 10% - 60%

-20ºC - 60ºC / 10% - 60%

-20ºC - 60ºC / 10% - 60%

Storage Temp/Humidity

-30ºC - 60ºC / 10% - 60%

-30ºC - 60ºC / 10% - 60%

-30ºC - 60ºC / 10% - 60%

-30ºC - 60ºC / 10% - 60%

Refresh Rate

>1,920 Hz

>1,920 Hz

>1,920 Hz

>1,920 Hz

Brightness

>5000 nits

>5000 nits

>5000 nits

>5000 nits

Horizontal Viewing Angle

160°

160°

160°

160°

Vertical Viewing angle

140°

140°

140°

140°

Expected Lifetime

100, 000 Hrs

100, 000 Hrs

100, 000 Hrs

100, 000 Hrs

Max Stacking

20/10

20/10

20/10

20/10

Max Hanging

20/10

20/10

20/10

20/10

Servicing

Front / Rear

Front / Rear

Front / Rear

Front / Rear

IP Rating (Front/Rear)

IP 65/ IP 54

IP 65/ IP 54

IP 65/ IP 54

IP 65/ IP 54

Scan Method

1/16 Scan

1/13 Scan

1/7 Scan

1/10 Scan
