BHD-Lite Series,Shenzhen Bako Vision Technology Co., LTD

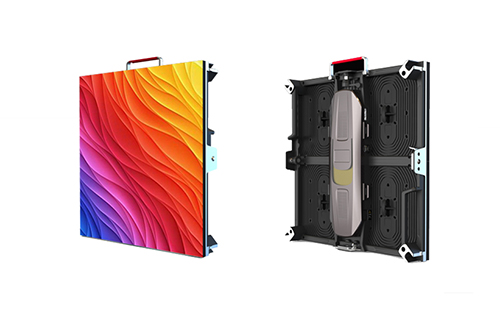

	BHD-Lite Series Ultra Light, Mudular Design ● Extreme Lightweright 4.5KG per Cabinet ● Cost Efficient ● Modular Power & Signal System ● Fine Pitch 1.579mm - 2.5mm

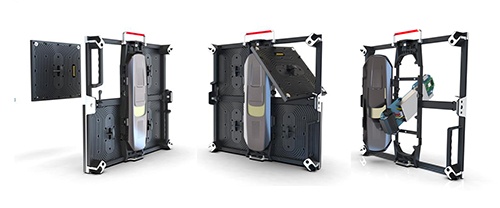

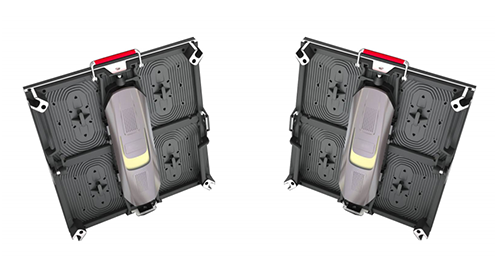

Ultra Light and Thin ● Only 4.5 KG per cabinet ● Cabinet Dimensions 480mm x 480mm x 63mm ● Precision machined high quality die-cast ● Easy to carry and install	Fully Front or Rear Accessible ● Both fully front or rear service ● Magnetic modules, Cable-less Connection ● Tools-free installation and dismantling ● Easy maintenance

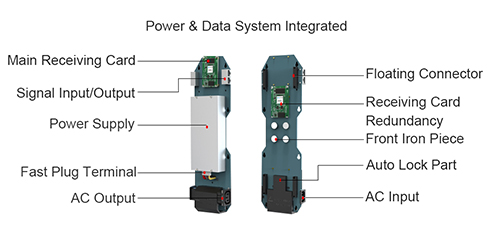

Modular Power and Signal Integration ● Modular power and signal box replaceable ● Power and signal redundancy ● Tools free replace and assemble	Superior Color Performance ● 16 bits high gray level, 3840Hz refresh rate ● Extra-wide viewing angle of 160° ● Phenomenal contrast ratio

	BHD-Lite-1.5	BHD-Lite-1.8	BHD-Lite-2.5	BHD-Lite-3
Physical Pitch	1.579 mm	1.875 mm	2.5 mm	3 mm
Pixel Configuration	SMD 1010	SMD 1515	SMD 2121	SMD 2121
Pixel Density	401,956 pixels/m²	284,444 pixels/m²	160,000 pixels/m²	110,889 pixels/m²
Module Dimensions (W × H) (mm)	240 × 240	240 × 240	240 × 240	240 × 240
Panel Dimensions (mm)	480 × 480 × 80	480 × 480 × 80	480 × 480 × 80	480 × 480 × 80
NO.of Modules Per Panel (W × H)	2 × 2	2 × 2	2 × 2	2 × 2
Physical Resolution of Module (W × H)	152 × 152	128 × 128	96 × 96	96 × 96
Physical Resolution of Panel (W × H)	304 × 304	256 × 256	192 × 192	160 × 160
Panel Material	Die-Casting Aluminum	Die-Casting Aluminum	Die-Casting Aluminum	Die-Casting Aluminum
Single Cabinet Weight	7 kg/panel	7 kg/panel	7 kg/panel	7 kg/panel
Gray Scale	16 bit	16 bit	16 bit	16 bit
Colours	281 trillion	281 trillion	281 trillion	281 trillion
Contrast Ratio	4,000 : 1	4,000 : 1	4,000 : 1	4,000 : 1
Average Power Consumption	258 W /m²	260 W /m²	215 W /m²	235 W /m²
Max Power Consumptionx	715 W/m²	690 W/m²	640 W/m²	670 W/m²
Operating Temp/Humidity	-10℃-60℃ / 10% -60%	-10℃-60℃ / 10% -60%	-10℃-60℃ / 10% -60%	-10℃-60℃ / 10% -60%
Storage Temp/Humidity	-30℃-60℃ / 10%-60%	-30℃-60℃ / 10%-60%	-30℃-60℃ / 10%-60%	-30℃-60℃ / 10%-60%
Refresh Rate	> 2,880 Hz	> 2,880 Hz	> 2,880 Hz	> 2,880 Hz
Srightness	600 - 1,000 nits	600 - 1,000 nits	600 - 1,000 nits	600 - 1,000 nits
Horizontal Viewing Angle	160°	160°	160°	160°
Vertical Viewing Angle	140°	140°	140°	140°
Expected Lifetime	100, 000 Hrs	100, 000 Hrs	100, 000 Hrs	100, 000 Hrs
Servicing	Front / Rear	Front / Rear	Front / Rear	Front / Rear
IP Rating (Front/Rear)	IP 40 / IP 21	IP 40 / IP 21	IP 40 / IP 21	IP 40 / IP 21
Scan Method	1/38 Scan	1/38 Scan	1/32 Scan	1/20 Scan
