UHD-II 1.2

UHD-II 1.5

UHD-II 1.8

UHD-II 2.3

Physical Pitch

1.25mm

1.56mm

1.87mm

2.34mm

Pixel Configuration

SMD 1010

SMD 1010

SMD 1010

SMD2121

Pixel Density

648,000 pixels/m²

410,881 pixels/m²

286,225 pixels/m²

182,329 pixels/m²

Module Dimensions (W × H) (mm)

150 × 168.75

150 × 168.75

150 × 168.75

150 × 168.75

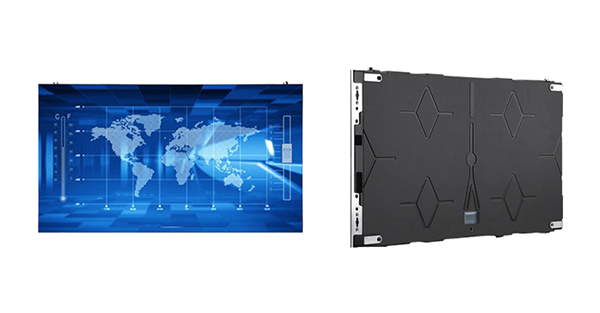

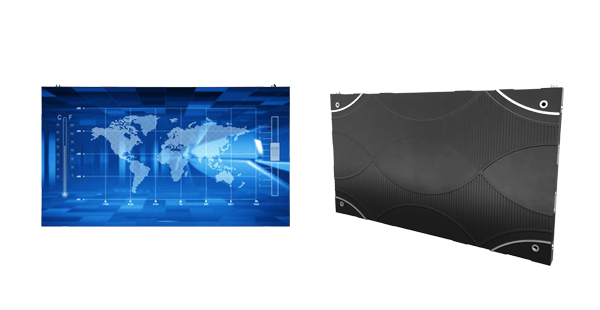

Panel Dimensions (mm)

600 × 337.5

600 × 337.5

600 × 337.5

600 × 337.5

NO.of Modules Per Panel (W × H)

4 × 2

4 × 2

4 × 2

4 × 2

Physical Resolution of Module (W × H)

120 × 135

96 × 108

80 × 90

64 × 72

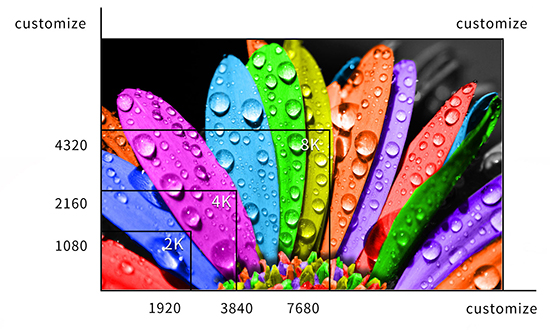

Physical Resolution of Panel (W × H)

480 × 270

384 × 216

320 × 180

256 × 144

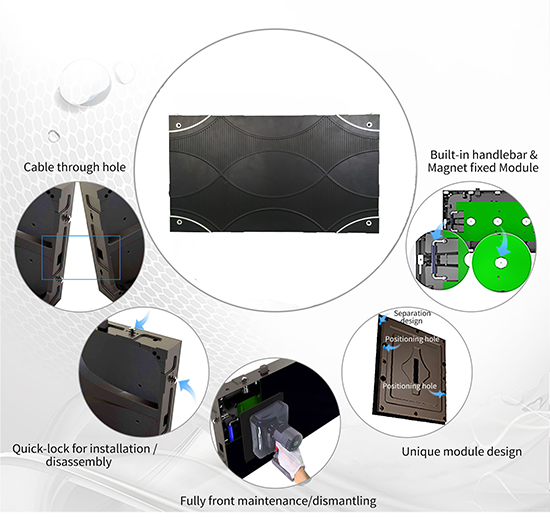

Panel Material

Die-casting

Die-casting

Die-casting

Die-casting

Single Cabinet Weight

4.5 kg/panel

4.5 kg/panel

4.5 kg/panel

4.5 kg/panel

Gray Scale

16 bit

16 bit

16 bit

16 bit

Colours

281 trillion

281 trillion

281 trillion

281 trillion

Contrast Ratio

4,000 ：1

4,000 ：1

4,000 ：1

4,000 ：1

Average Power Consumption

≤300 W/m²

≤300 W/m²

≤300 W/m²

≤300 W/m²

Max Power Consumption

≤600 W/m²

≤600 W/m²

≤600 W/m²

≤600 W/m²

Brightness

600~800 nits

600~800 nits

600~800 nits

600~800 nits

Refresh Rate

>2,880Hz

>2,880Hz

>2,880Hz

>2,880Hz

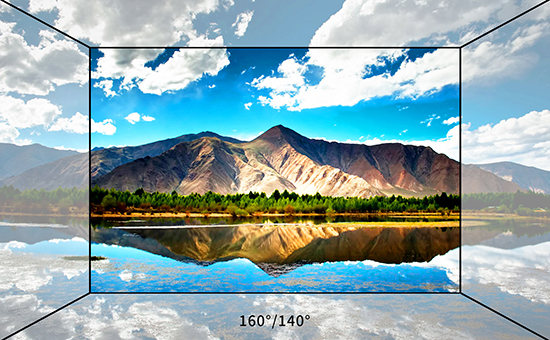

Horizontal Viewing Angle

160°

160°

160°

160°

Vertical Viewing Angle

140°

140°

140°

140°

Expected Lifetime

≥100,000 Hrs

≥100,000 Hrs

≥100,000 Hrs

≥100,000 Hrs

Operating Temp/Humidity

-20°C-50 °C / 10%-90%

-20°C-50 °C / 10%-90%

-20°C-50 °C / 10%-90%

-20°C-50 °C / 10%-90%

Storage Temp/Humidity

-40°C-60°C / 10%-85%

-40°C-60°C / 10%-85%

-40°C-60°C / 10%-85%

-40°C-60°C / 10%-85%

IP Rating (Front/Rear)

IP 40/ IP 21

IP 40/ IP 21

IP 40/ IP 21

IP 40/ IP 21

Scan Method

1/45 1/27 Scan

1/27 Scan

1/30 Scan

1/24 Scan
