UHD-Grand Series

Feature     |      Parameter     |   Case













UHD-Grand  Series

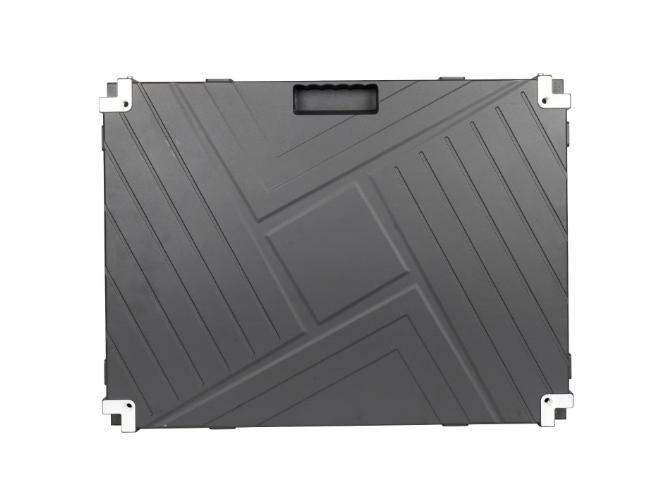

Small Pitch, Large Cabinet



● Available from 1.25mm to 2.5mm

● 640mm X 480mm Large Cabinet

● High Grey and High Refresh Rate

● Fully Front Access for Wall Mounting

● Stock Ready, Fast Delivery

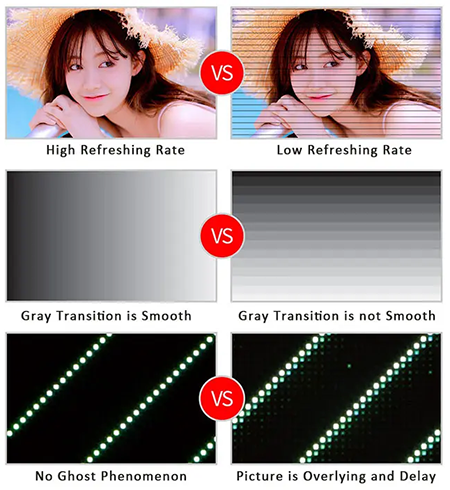

Unsurpassed Color and Grey Performance

 Unique color calibration process

● Ultra wide viewing angle 160°/160°

● Contrast ratio 4000:1, Refresh rate 3840Hz

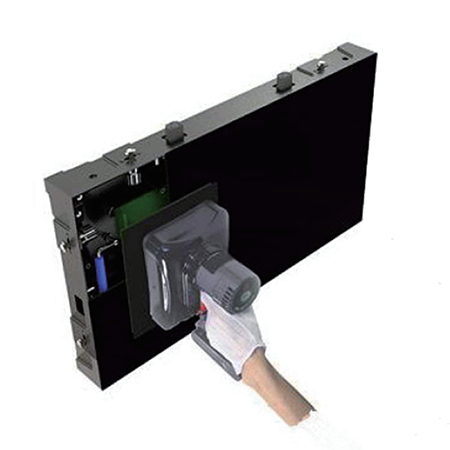

Fast Installation and Easy Maintenance

 Fully front installation, fully front access

● Vacuum suction, easy for maintenance

 Cable-less between cabinets

 Wall mounting available







Energy-Saving and Environmental Friendly

● Low power consumption

● The average power ≤ 85W/M2

 Anti Blue-Light, Avoid Visual Fatigue





























UHD-G-1.25

UHD-G-1.5

UHD-G-1.6

UHD-G-2

UHD-G-2.5

Physical Pitch

1.25mm

1.538mm

1.667mm

2mm

2.5mm

Pixel Configuration

SMD 1010

SMD 1010

SMD 1515

SMD 1010

SMD 1010

Pixel Density

640,000pixels/m²

422,500 pixels/m²

360,000 pixels/m²

250,000 pixels/m²

160,000 pixels/m²

Module Dimensions (W × H) (mm)

320 × 160

320 × 160

320 × 160

320 × 160

320 × 160

Panel Dimensions (mm)

640 × 480 x 85

640 × 480 x 85

640 × 480 x 85

640 × 480 x 85

640 × 480 x 85

NO.of Modules Per Panel (W × H)

2 × 3

2 × 3

2 × 3

2 × 3

2 × 3

Physical Resolution of Module (W × H)

256 × 128

208 × 104

192 × 96

160 × 80

128 × 64

Physical Resolution of Panel (W × H)

512 × 384

416 × 312

384 × 288

320 × 240

256 × 160

Panel Material

Die-casting

Die-casting

Die-casting

Die-casting

Die-casting

Single Cabinet Weight

7.2 kg/panel

7.2 kg/panel

7.2 kg/panel

7.2 kg/panel

7.2 kg/panel

Gray Scale

16 bit

16 bit

16 bit

16 bit

16 bit

Colours

281 trillion

281 trillion

281 trillion

281 trillion

281 trillion

Contrast Ratio

4,000 1

4,000 1

4,000 1

4,000 1

4,000 1

Average Power Consumption

118 W/m²

118 W/m²

118 W/m²

25~30 W/m²

85 W/m²

Max Power Consumption

350 W/m²

350 W/m²

350 W/m²

120 W/m²

240 W/m²

Brightness

500~800 nits

500~800 nits

500~800 nits

500~800 nits

500~800 nits

Refresh Rate

3,840Hz

3,840Hz

3,840Hz

3,840Hz

3,840Hz

Horizontal Viewing Angle

160°

160°

160°

160°

160°

Vertical Viewing Angle

160°

160°

160°

160°

160°

Expected Lifetime

≥100,000 Hrs

≥100,000 Hrs

≥100,000 Hrs

≥100,000 Hrs

≥100,000 Hrs

Operating Temp/Humidity

-20°C-50 °C / 10%-90%

-20°C-50 °C / 10%-90%

-20°C-50 °C / 10%-90%

-20°C-50 °C / 10%-90%

-20°C-50 °C / 10%-90%

Storage Temp/Humidity

-40°C-60°C / 10%-85%

-40°C-60°C / 10%-85%

-40°C-60°C / 10%-85%

-40°C-60°C / 10%-85%

-40°C-60°C / 10%-85%

IP Rating (Front/Rear)

IP 40/ IP 21

IP 40/ IP 21

IP 40/ IP 21

IP 40/ IP 21

IP 40/ IP 21

Scan Method

1/64 Scan

1/52 Scan

1/64 Scan

1/40 Scan

1/32 Scan
