BDF  Series

          Die Casting, One Chassis,

        Variable Pitch Options



● Lightweight Large Format, Slim and Smart

● Ideal substitution for Traditional Cabinet

● I/O advertising billboardas









         Smart and Variable

● One standard chassis 1024mmx768mm, covering pitches

   from 2.6mm to 10.6mm

● Suitable brightness adjustable for outdoor day and night

● Deep black levels, contrast ratio 4000:1

Fast Installation and Easy Maintenance

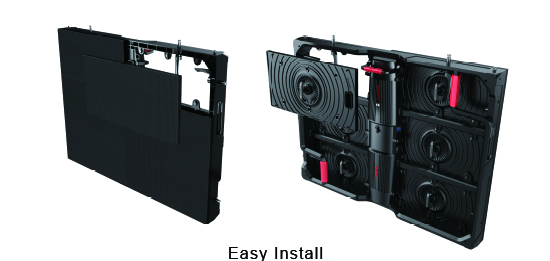

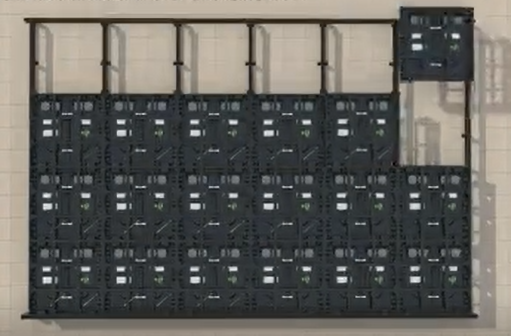

● Fast lock system design guarantees a quick and easy installation

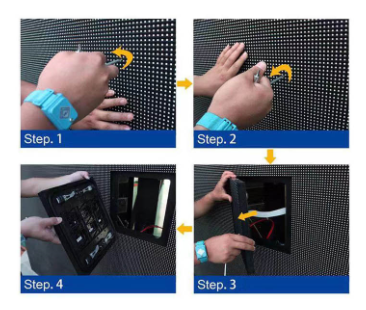

● Front and rear accessible

















Slim, Light Weight and Quiet

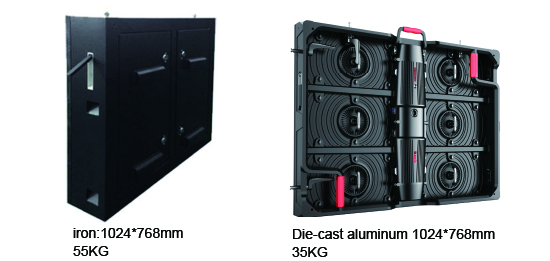

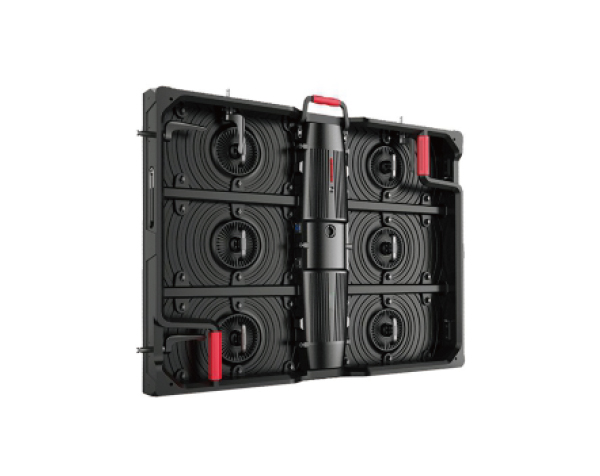

● Die casting cabinet, 27-32kg per cabinet

● 100mm thickness

● Fanless design



Versatile Dual Purpose Design

● Cabinet can be reclined between 0-30 degree to ensure the

    best angle for audience and camera

● Adding with ground adjustable bracket and protection

   foam bumper can be transformed to be perimeter display













BDF-2

BDF-3

BDF-5

BDF-6

Physical Pitch

2.6mm

3.2mm

5.33mm

6.4mm

Pixel Configuration

SMD1617

SMD1617

SMD1921

SMD2727

Pixel Density

141376 pixels/m²

97656 pixels/m²

35200 pixels/m²

24414 pixels/m²

Module Dimensions (W× H) (mm)

512X256

512X256

512X256

512X256

Panel Dimensions (mm)

1024X768X100

1024X768X100

1024X768X100

1024X768X100

NO .of Modules Per Panel (W × H)

2X3

2X3

2X3

2X3

Physical Resolution of Module ( W× H)

192x98

160X80

96X48

80X40

Physical Resolution of Panel ( W× H)

394X294

320X240

192X144

160X120

Single Cabinet Weight

35 kg

35 kg

35 kg

35 kg

Panel Material

Die-Casting Aluminum

Die-Casting Aluminum

Die-Casting Aluminum

Die-Casting Aluminum

Gray Scale

16 bit

16 bit

16 bit

16 bit

Colours

281 trillion

281 trillion

281 trillion

281 trillion

Contrast Ratio

4000:1

4000:1

2000:1 / 4000:1

2000:1 / 4000:1

Average Power Consumption

240W/Panel

240W/Panel

240W/Panel

240W/Panel

Max Power Consumption

600W/Panel

600W/Panel

600W/Panel

600W/Panel

Refresh Rate

>1920 Hz

>1920 Hz

>1920 Hz

>1920 Hz

Brightness

>2500 nits

>4000 nits

>4500 nits

>5500 nits

Horizontal Viewing Angle

160°

160°

160°

160°

Vertical Viewing angle

140°

140°

140°

140°

Expected Lifetime

100,000 Hrs

100,000 Hrs

100,000 Hrs

100,000 Hrs

Servicing

Front/Rear

Front/Rear

Front/Rear

Front/Rear

IP Rating (Front/Rear)

IP65 / IP54

IP65 / IP54

IP65 / IP54

IP65 / IP54

Operating Temperature

-20~60℃/10~90℃

-20~60℃/10~90℃

-20~60℃/10~90℃

-20~60℃/10~90℃

Storage  Temperature

-30~60℃/10~90℃

-30~60℃/10~90℃

-30~60℃/10~90℃

-30~60℃/10~90℃

Scan Method

1/24 Scan

1/20 Scan

1/8 Scan

1/5 Scan






BDF-8

BDF-10

BDF-12

BDF-16

Physical Pitch

8mm

10mm

12mm

16mm

Pixel Configuration

SMD2727

SMD3535

SMD2727

DIP346

Pixel Density

15625 pixels/m²

8800 pixels/m²

6103 pixels/m²

3906 pixels/m²

Module Dimensions (W× H) (mm)

512X256

512X256

512X256

512X256

Panel Dimensions (mm)

1024X768X100

1024X768X100

1024X768X100

1024X768X100

NO .of Modules Per Panel (W × H)

2X3

2X3

2X3

2X3

Physical Resolution of Module ( W× H)

64x32

48x24

40x20

32x16

Physical Resolution of Panel ( W× H)

128x96

96x72

80x60

164x48

Single Cabinet Weight

35 kg

35 kg

35 kg

35 kg

Panel Material

Die-Casting Aluminum

Die-Casting Aluminum

Die-Casting Aluminum

Die-Casting Aluminum

Gray Scale

16 bit

16 bit

16 bit

16 bit

Colours

281 trillion

281 trillion

281 trillion

281 trillion

Contrast Ratio

2000:1 / 4000:1

2000:1 / 4000:1

2000:1 / 4000:1

2000:1 / 4000:1

Average Power Consumption

350W/

350W/

350W/

350W/

Max Power Consumption

700W/

700W/

700W/

700W/

Refresh Rate

>1920 Hz

>1920 Hz

>1920 Hz

>1920 Hz

Brightness

>5500 nits

>5500 nits

>5500 nits

>5500 nits

Horizontal Viewing Angle

160°

160°

160°

160°

Vertical Viewing angle

140°

140°

140°

140°

Expected Lifetime

100,000 Hrs

100,000 Hrs

100,000 Hrs

100,000 Hrs

Servicing

Front/Rear

Front/Rear

Front/Rear

Front/Rear

IP Rating (Front/Rear)

IP65 / IP54

IP65 / IP54

IP65 / IP54

IP65 / IP54

Operating Temperature

-20~60℃/10~90℃

-20~60℃/10~90℃

-20~60℃/10~90℃

-20~60℃/10~90℃

Storage  Temperature

-30~60℃/10~90℃

-30~60℃/10~90℃

-30~60℃/10~90℃

-30~60℃/10~90℃

Scan Method

1/4 Scan

1/3 Scan

1/2 Scan

Static Scan
